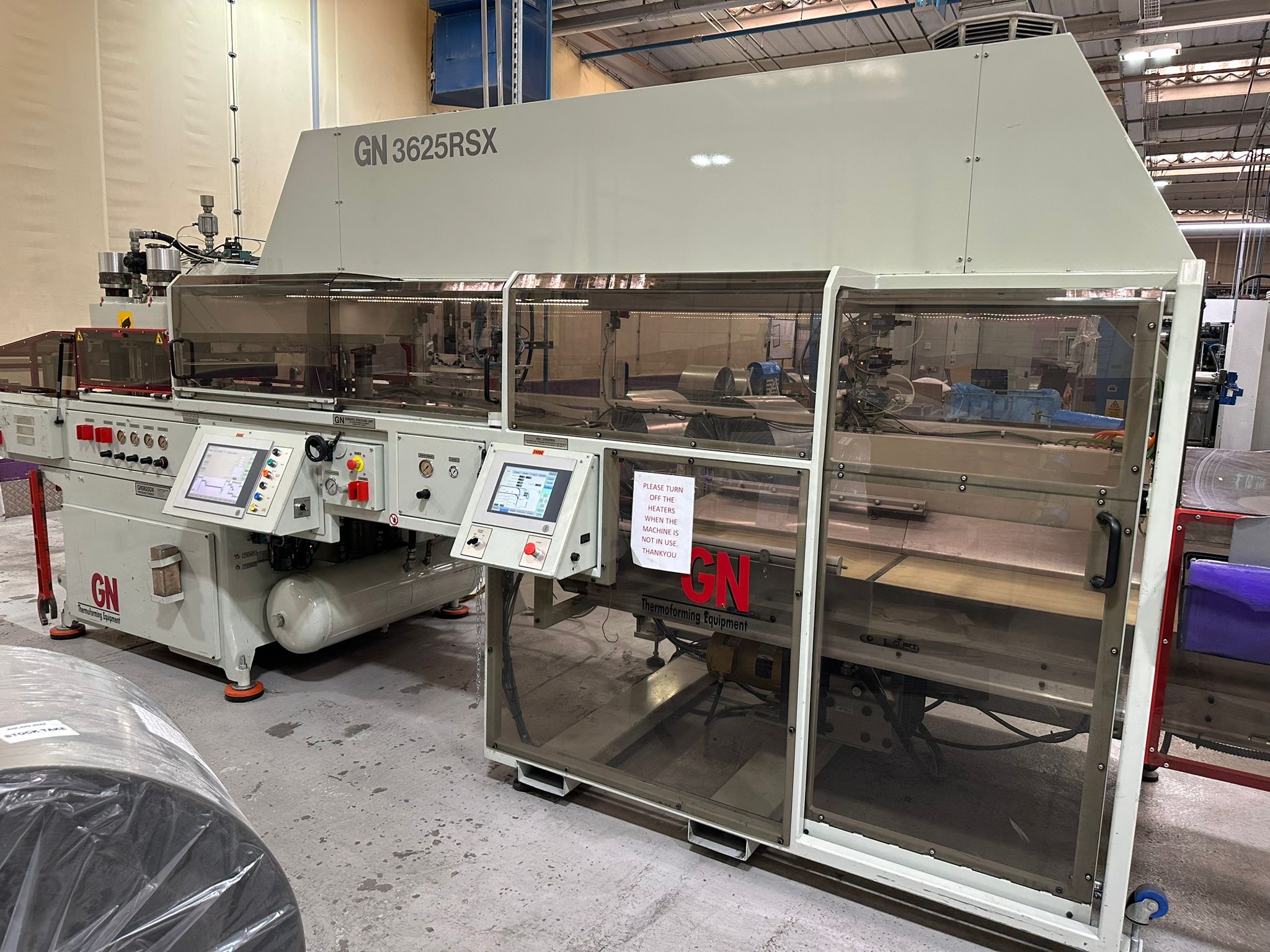

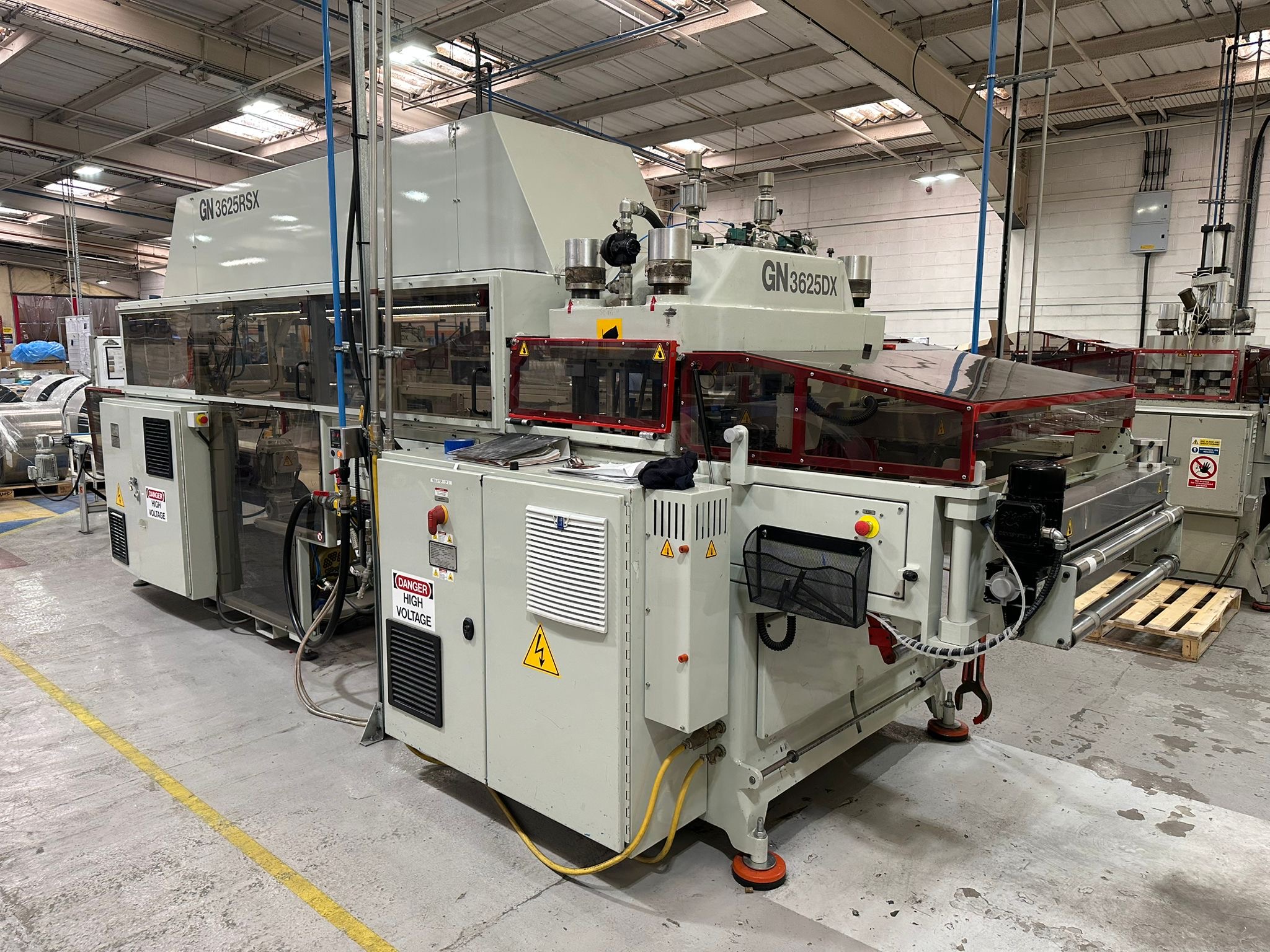

2018 GN 3625DX / RSX3625

Make: GN

Model: 3625DX with 3625 RSX Robot Stacker

Year: 2018

Hours: 20203

Availability: Immediately

Forming area: 915 × 635 mm (36″ × 25″)

Depth of draw: 125 mm (5″)

Maximum sheet width: 965 mm (38″)

Material thickness range: 0.15 – 1.00 mm (0.006″ – 0.040″)

Maximum cycle speed: 22 – 30 cycles per minute (depending on material and setup)

Power consumption: ~12 kW/hr

Electrical requirements:

3-phase, 220–240 V / 380–415 V / 440–480 V, 50–60 Hz

Cooling water:

14 L/min at 15–20 °C (3 gal/min at 58–68 °F)

Air requirements:

Pressure: ≥6.8 bar (100 PSI)

Flow: ~2,000 L/min (~80 CFM)

Knife length:

10,500 mm for APET

11,430 mm for other materials

Machine footprint: 3,200 × 2,100 × 2,210 mm (126″ × 83″ × 87″)

Weight: Approx. 5,987 kg (13,200 lb)

Key features:

Servo-driven platen and sheet transport

Multi-zone contact heating with preheater

Six-point toggle system with oversized bearings

In-mould cutting capability

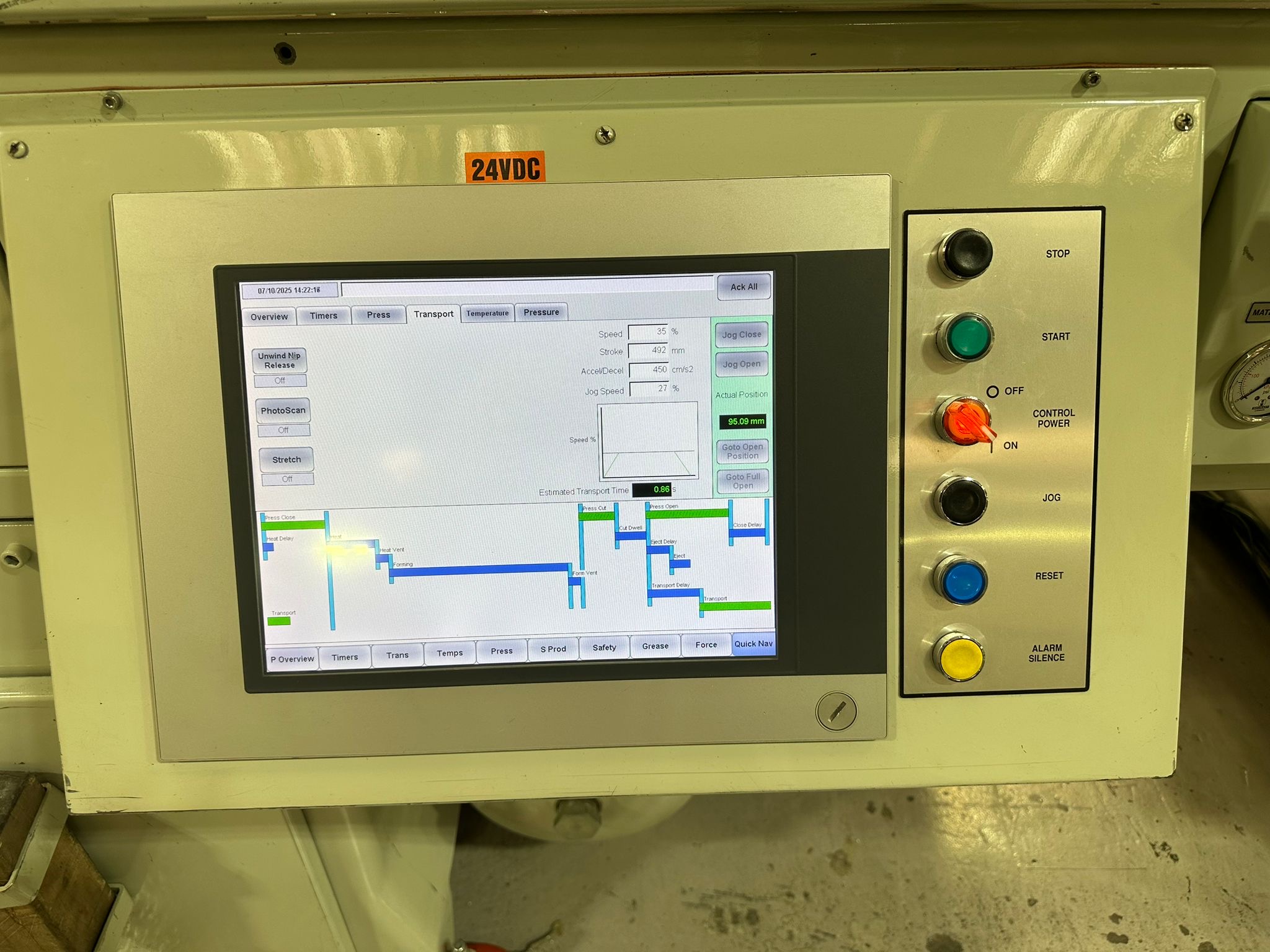

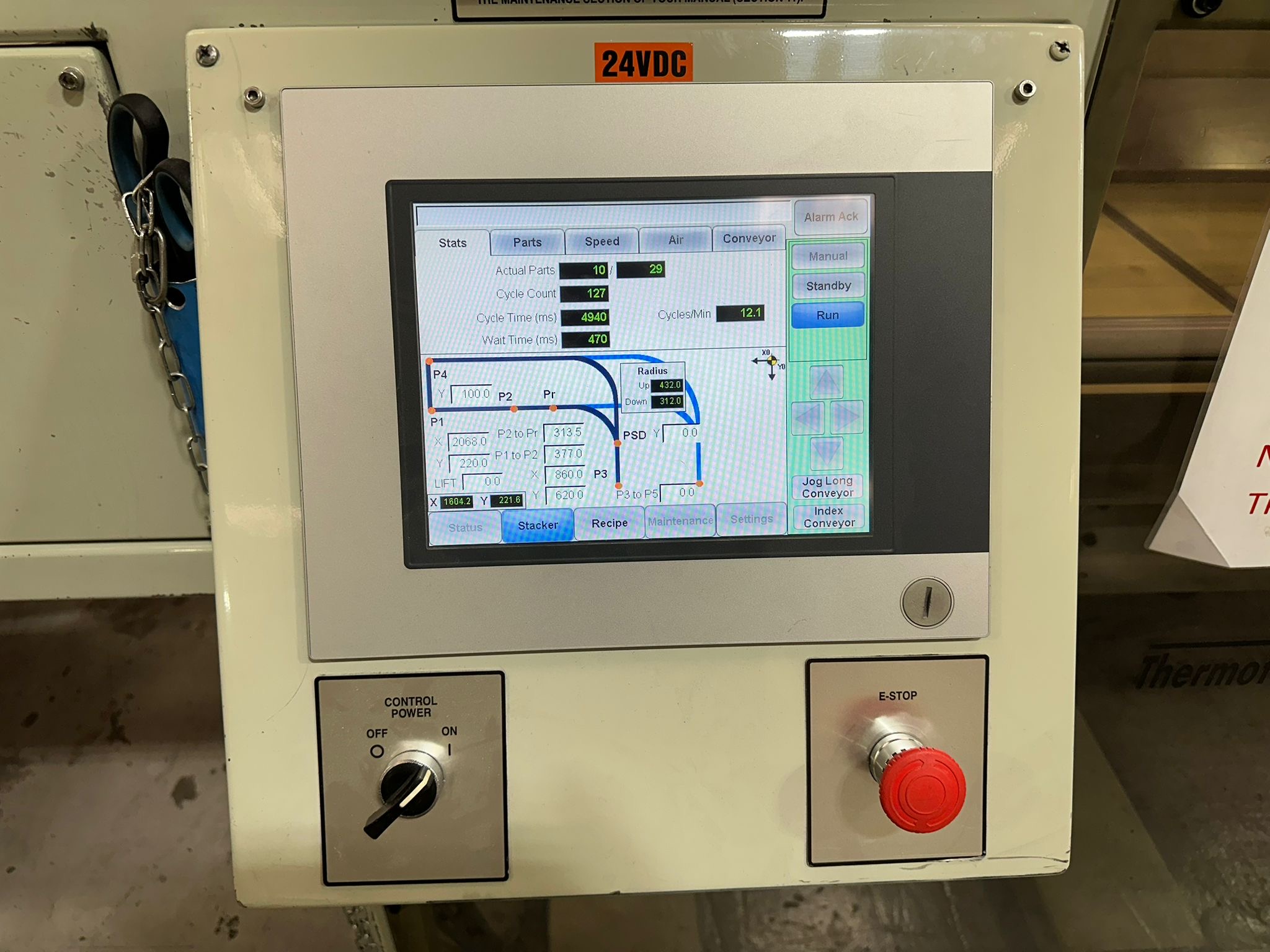

HMI with diagnostics and remote access

PLC control with tonnage monitoring

Included equipment:

Robotic stackers (GN RSX)

Efficiency highlights:

Low scrap rate (12–14%)

Compact layout

High APET output capability
