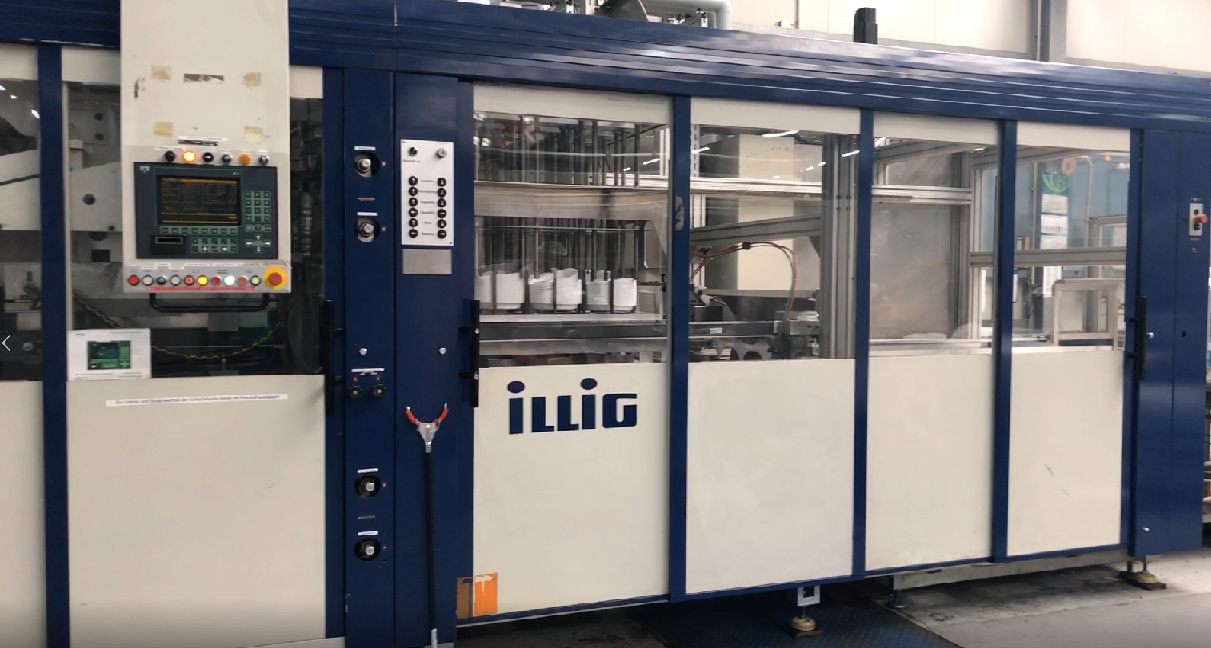

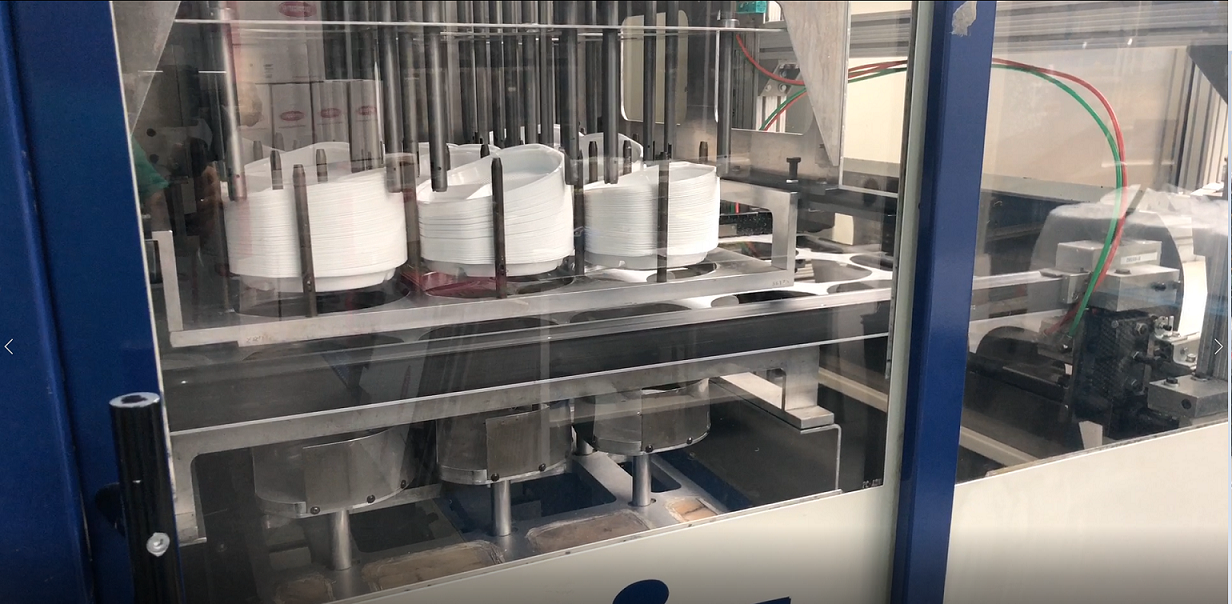

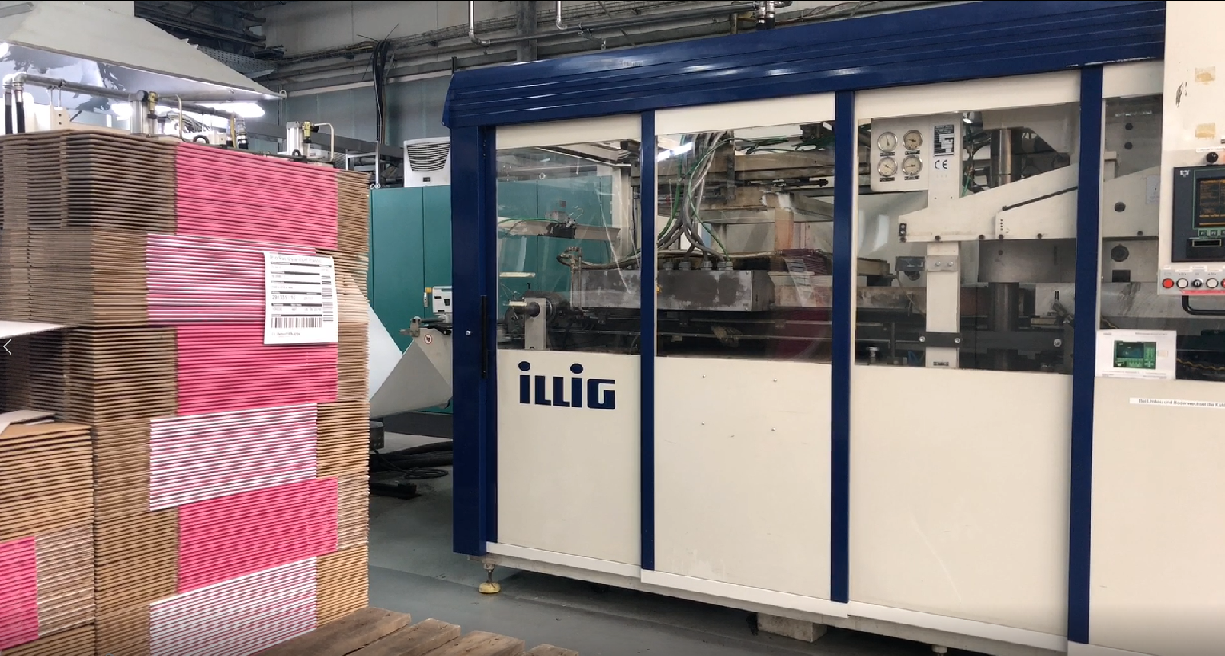

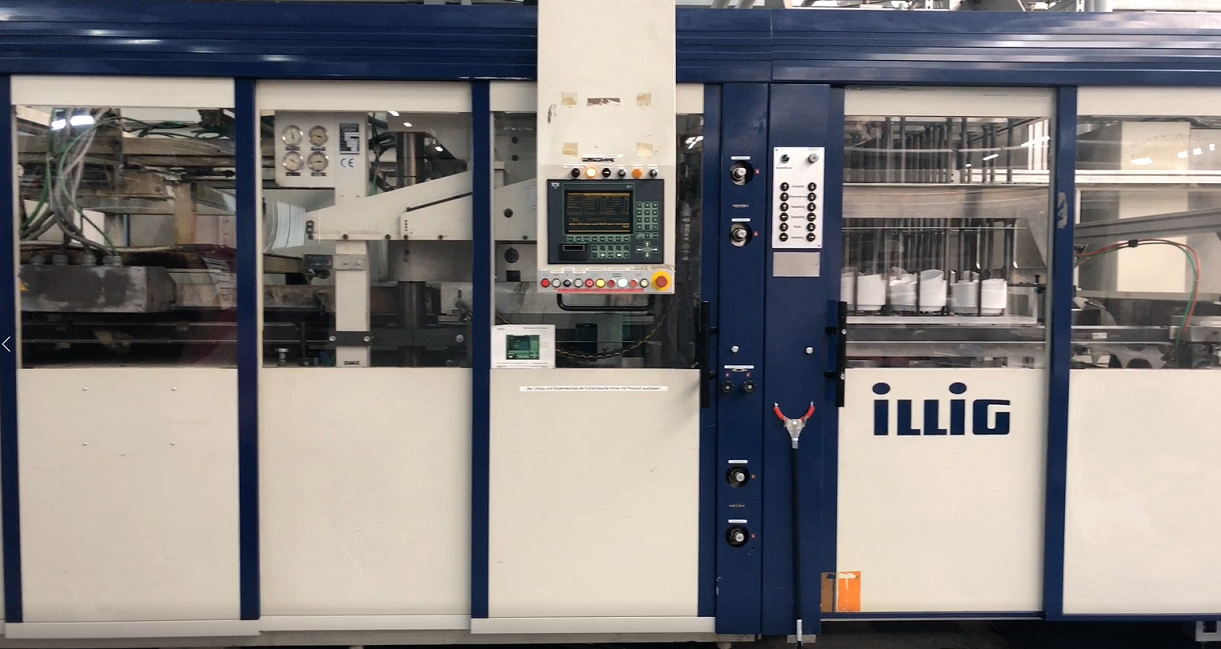

1999 Illig RDK 80S
Sold
Specifications
| Manufacturer | Illig |
| Model | RDK 80S |
| Year | 1999 |
| Condition | Used |
| Delivery date | Immediately |
| Stations | In Mould Cutting / Stacking |
| Max forming area | 780 x 845 mm (S model is larger) |
| Max form/punch area | 743 x 815 mm (S model is larger) |
| Depth of draw | 120 / 120 mm |
| Max material width | 805 mm |
| Max mould closing force | 750 kN |
| Max cycles-minute | 55 |
| Forming pressure | 6 bar |
| Approx total length | 5610 mm |
| Approx total width | 2510 mm |
| Approx total height | 3000 mm |
| Approx total weight | 11,000 kg |
| Notes | All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. |
