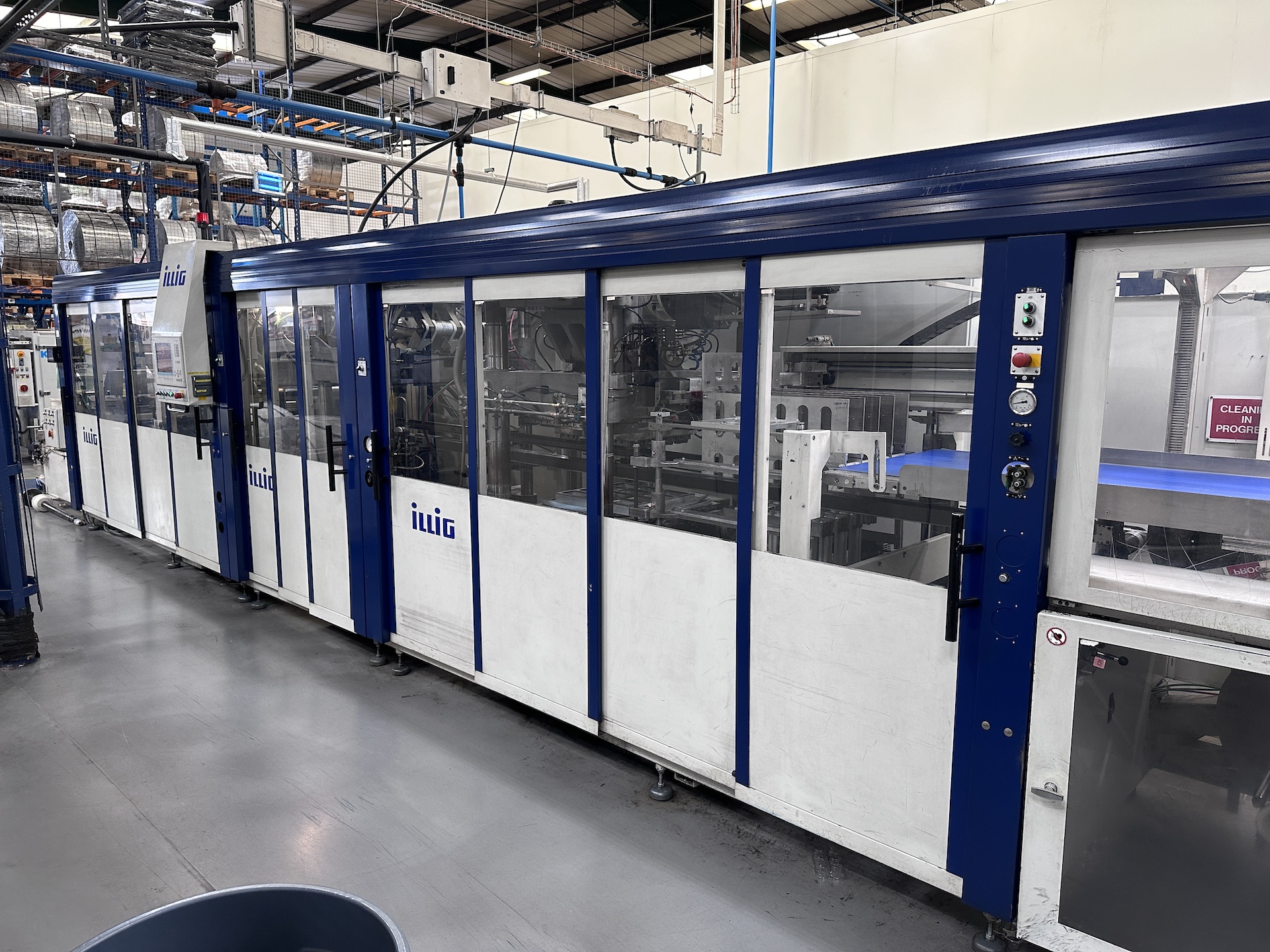

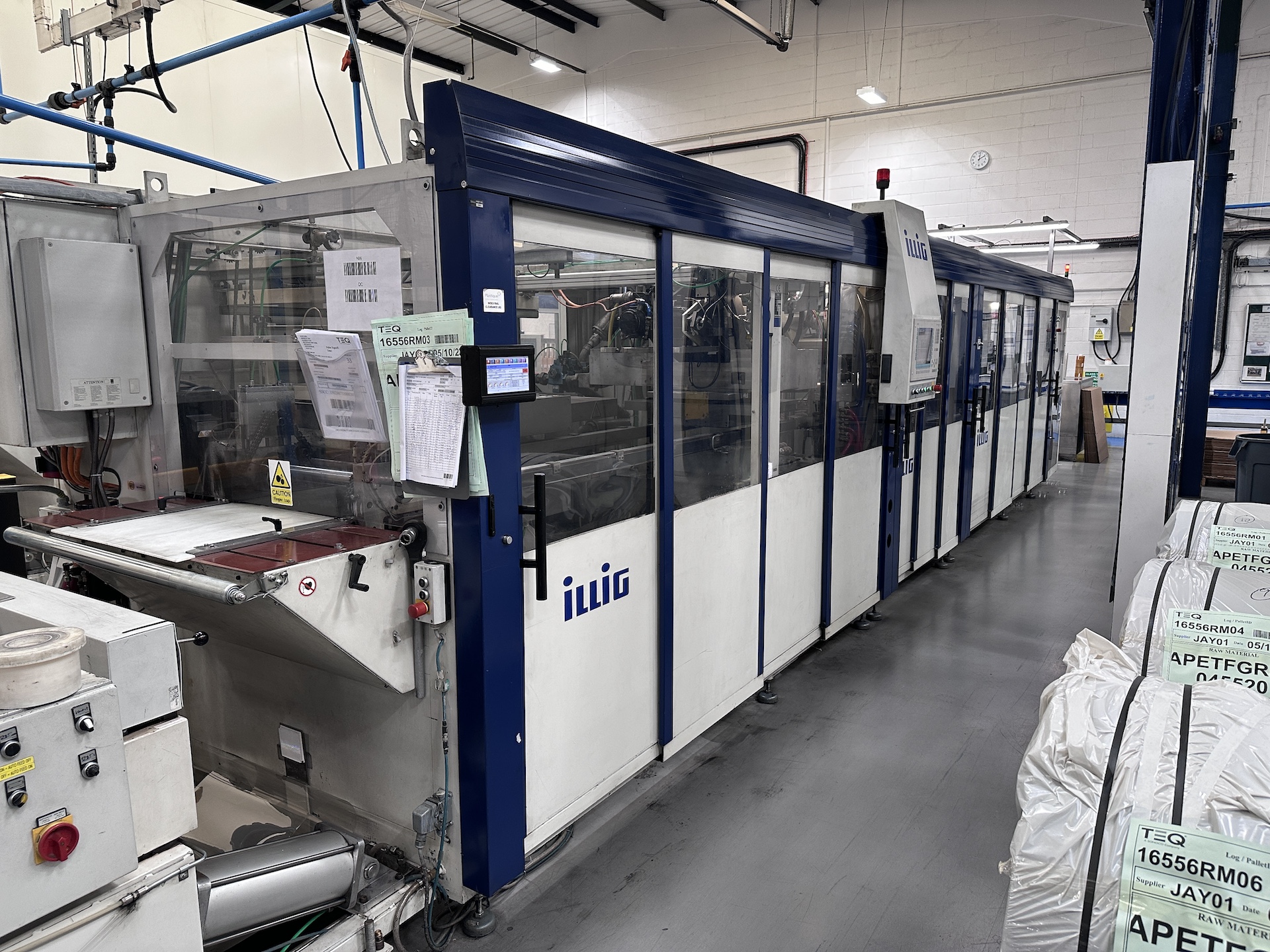

2007 Illig RDKP 72g
Sold
Specifications
| Manufacturer | Illig |
| Model | RDKP 72g |
| Year | 2007 |
| Condition | Used |

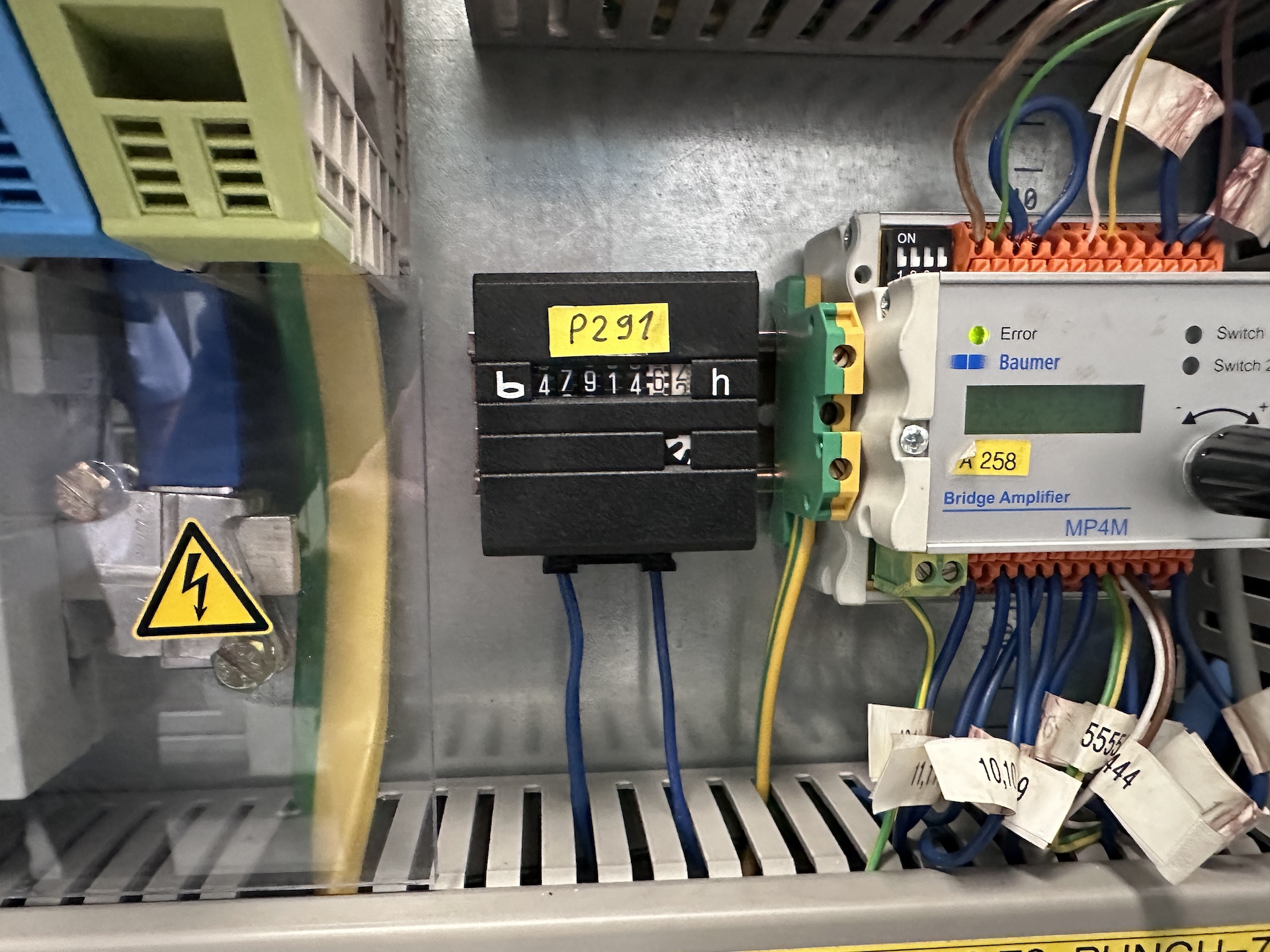

| Approx Hours | 47600 |

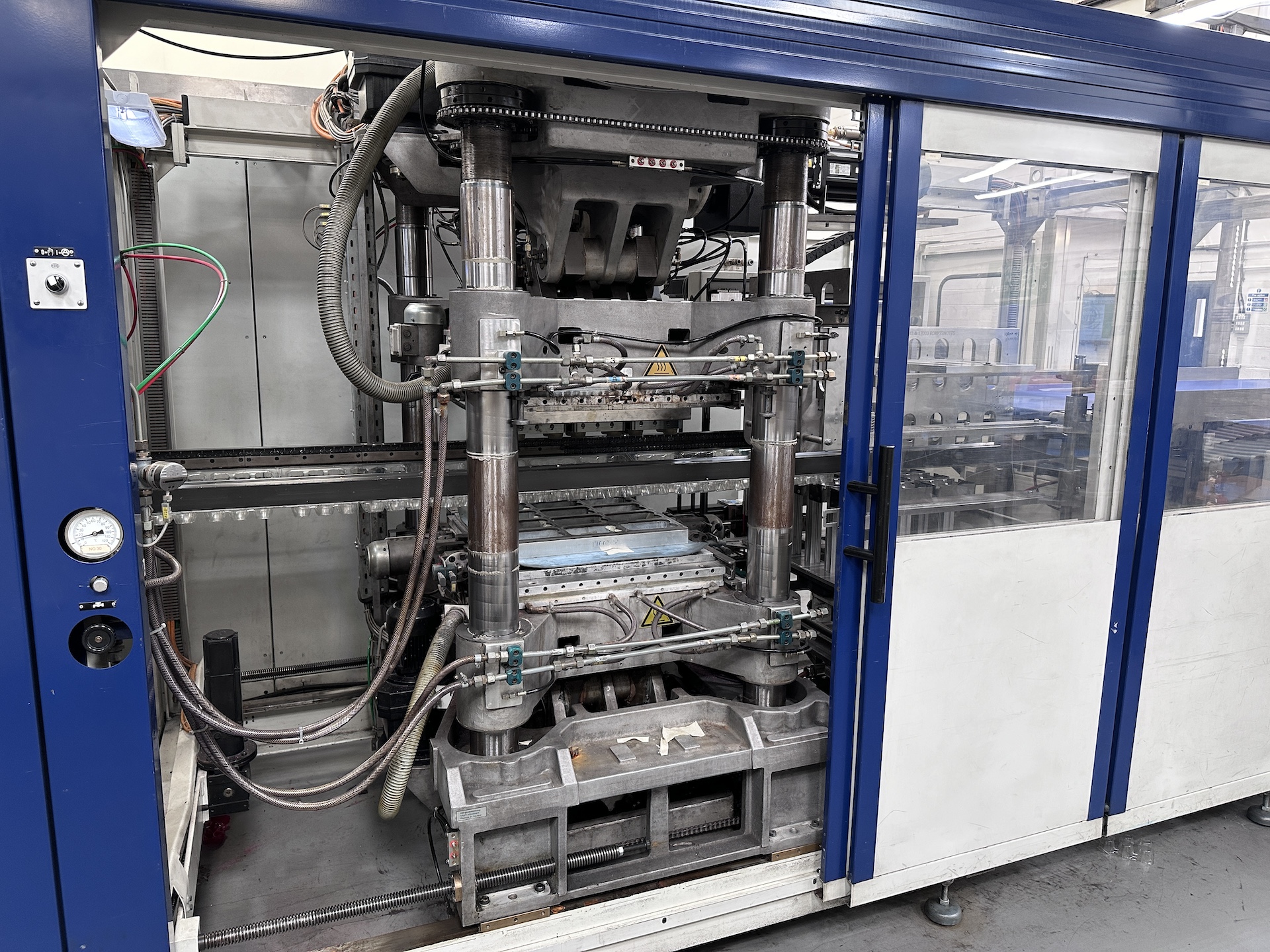

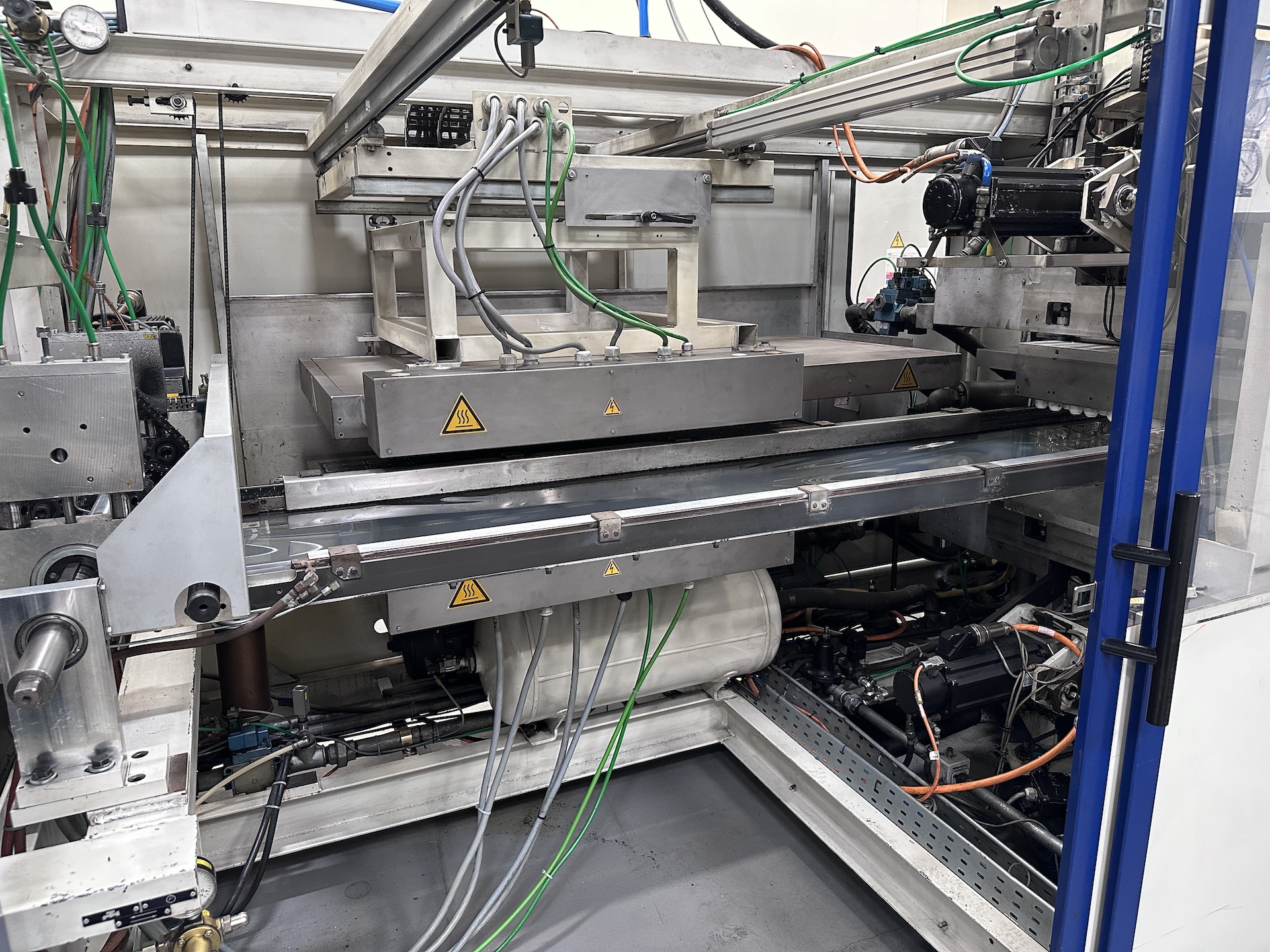

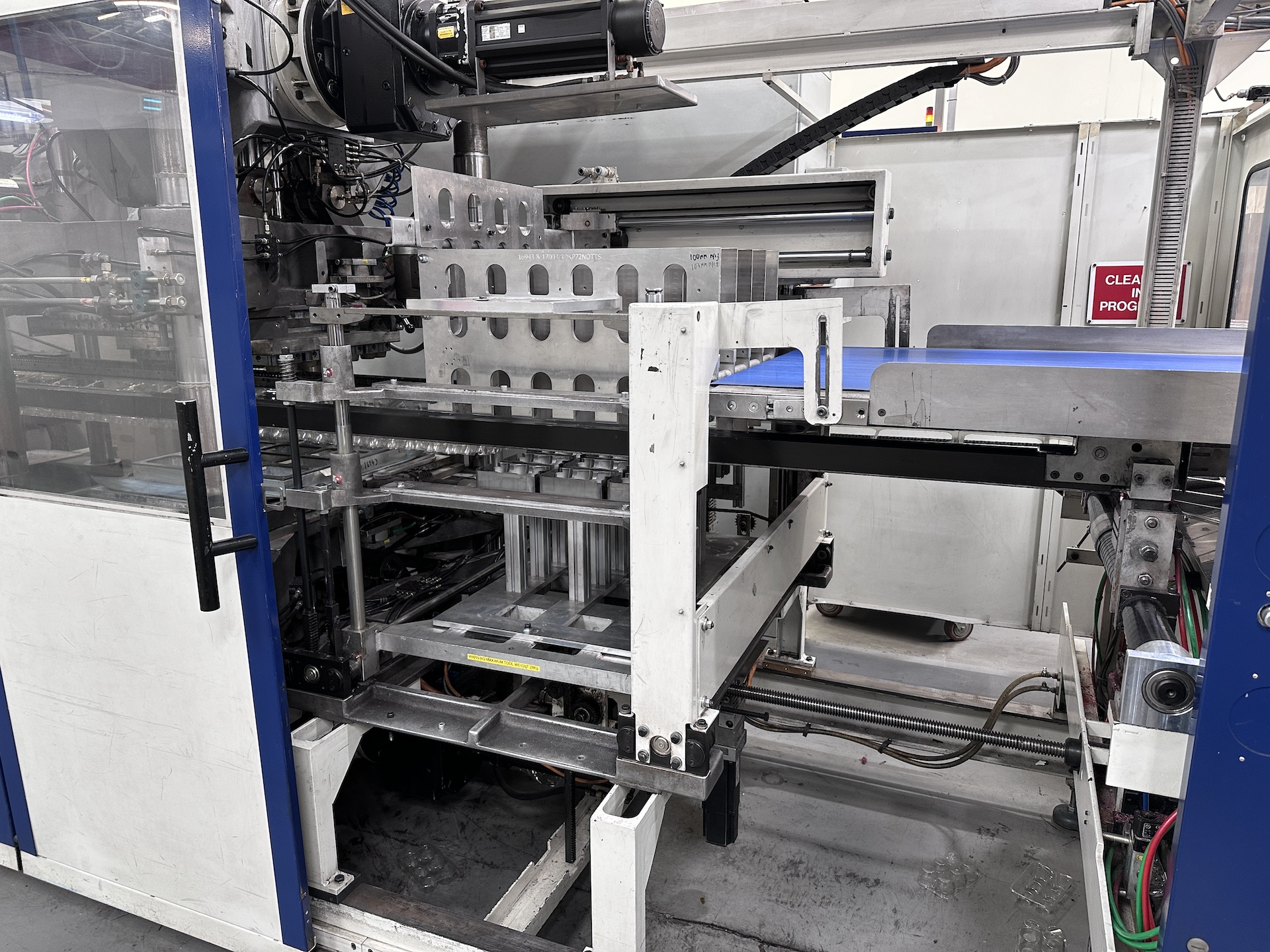

| Stations | Forming, Hole Punching, Cutting and Stacking |
| Delivery date | Immediately |
| Max forming area | 756 x 535 mm |
| Min Forming Area | 300 x 100 mm |
| Max Sheet Width | 805 mm |
| Depth of draw | 120 / 120 mm |
| Max mould closing force | 200 kN |
| Hole Punching Force | 200 kN |
| Steel Rule Punching Force | 600 kN |
| Max cycles-minute | 55 |
| Forming pressure | 6 bar |
| Approx total width | 2510 mm |
| Approx total height | 2500 mm |
| Approx total weight | 11,000 kg |
| Notes | All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. |
