2017 Illig RDKP 72k

Sold

Description

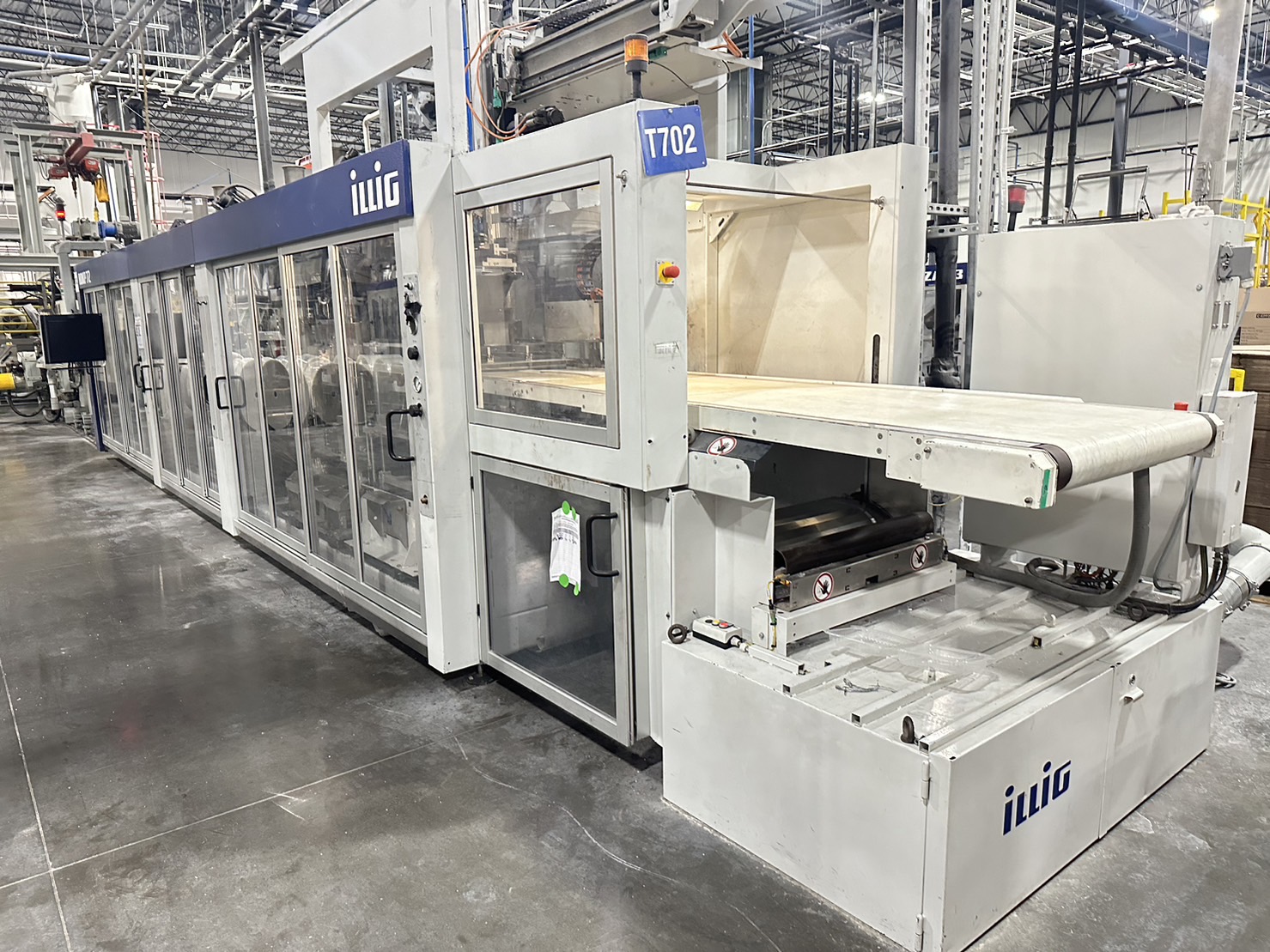

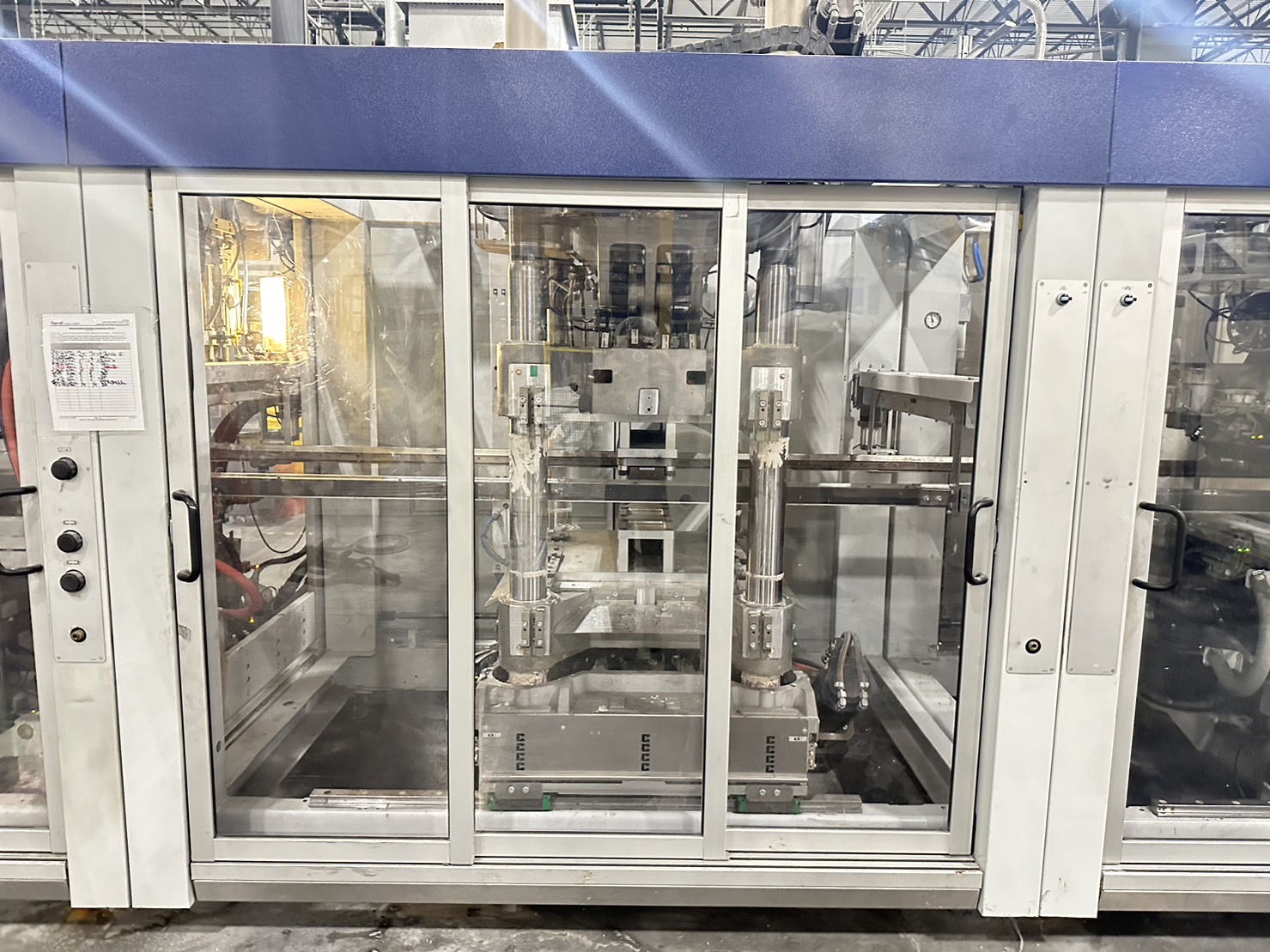

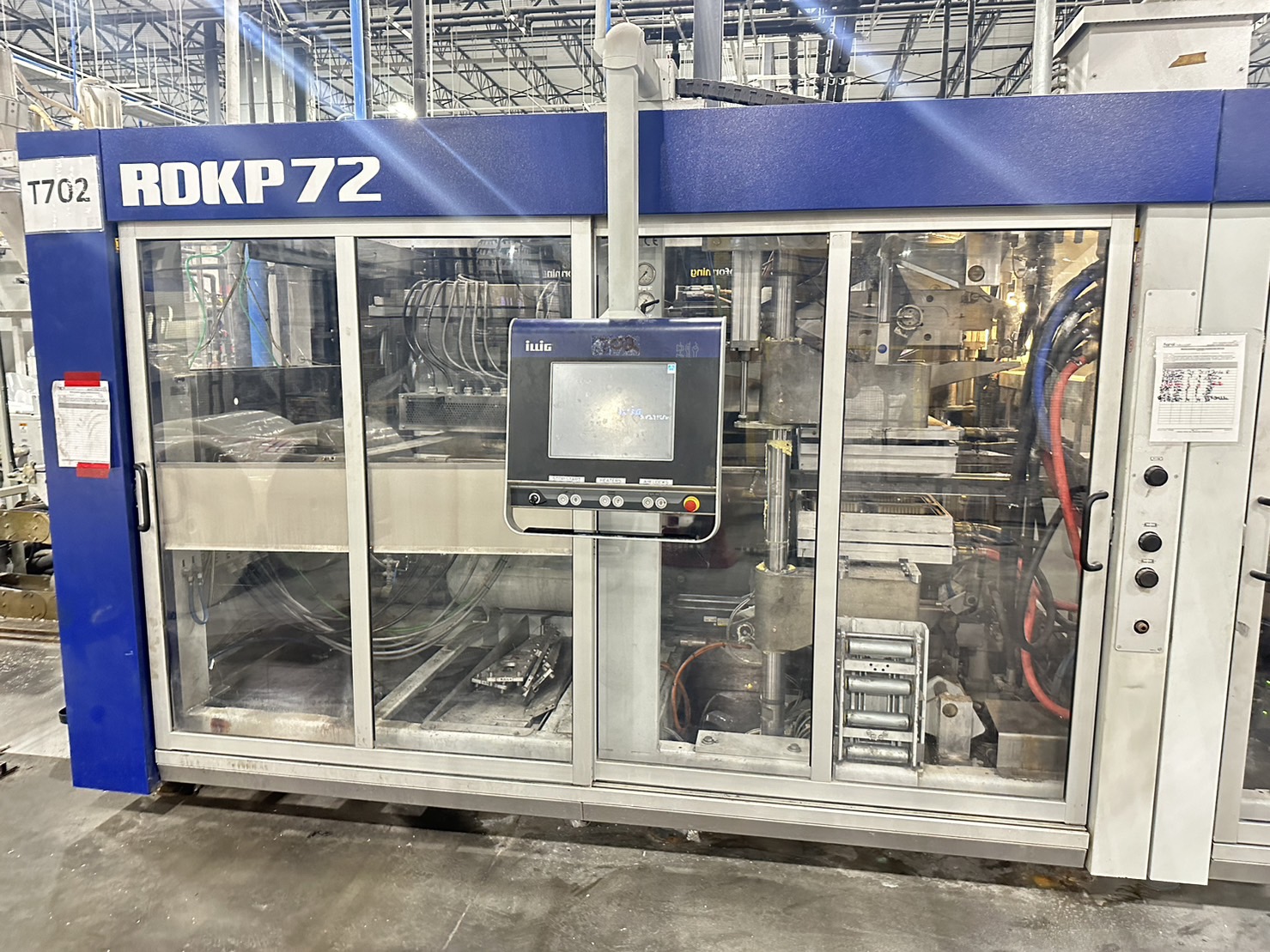

2017 Illig RDKP 72k 4 Station Thermoformer (28,100 working hours)


Forming area with actuated clamping frame max. 676 x 535mm

Forming area without/with spring-mounted clamp. frame max. 756 x535mm

Tool width between material transport with pneum. clamping frame max./min. 700 /450mm

Tool width between material transport without/with spring-mounted clamping frame max./min. 780/450mm

Tool length in indexing direction max./min. 565/270mm

Tool height at upper table max. 170mm

Tool height at lower table max. 170mm

Material width with actuated clamping frame max./min. 725/475mm

Material width without spring-mounted clamping frame max./min. 805/475mm

Material width at discharge side max. 845mm

Spreading dimension per side max. 20mm

Material thickness max. (subject to type of material) 2.5mm

Material thickness min. (subject to type of material) 0.18mm

Accuracy of material transport (measured at skeletal bridge) ±  0.2mm

Index length max./min 553/258mm

Height of formed part above material level max. 120mm

Height of formed part below material level max. 120mm

Total height of formed part max. 120mm

Table stroke on top max./min. 140/50mm

Table stroke on bottom max./min. 140/50mm

Length of upper heater 1750mm

Length of lower heater 1750mm

Carrying capacity of vacuum pumps (Series/[Option]) max. 140m³/h

Mold closing force max. 200kN

Forming pressure max. 5bar


Heat to be dissipated on upper and low er heat er max. 75000kJ/h

Cooling water connection on machine 1"

Cooling water connection tool cooling circuit 1"

Cooling water connection material transport 0.5"

Cooling water connection machine recommended 20°C

Cooling water connection tool recommended 15°C

Cooling water pressure 4 - 6bar

Compressed air connection on machine 1.5"

Compressed air tank 100L

Operating pressure 6 - 10bar

Supply pressure recommended 8bar

Number of cycles max. 40 1/min

Number of cycles with process optimisation max. 55 1/min

Number of cycles min. 5 1/min

Material level above ground approx. Total length without material roll stand 1150mm


Connected loads

Upper heater 37.1 kW

Lower heater 37.1 kW

Upper heater (Option) [38.4 kW]

Lower heater (Option)[38.4 kW]

Vacuum pump 3.0 kW

Forming machine 4kW

Servo-drive for upper and lower clamping frame 1kW

Total connected load (Option) 81.2 kW

Individual air requirement per working cycle at 6 bar supply pressure

Average forming air at 5 bar forming pressure approx. 210 NL/cycle

Clamping frame, pneumatically 50 NL/cycle

Demoulding air approx. 15 NL/cycle

Total air consumption per working cycle approx. 275 NL/cycle


Hole punch

Number of cycles max. 55 1/min

Punching force max. 600 kN

Height adj. upp. table adjustment value 0.1 mm/cycle

Tool width between material transport max. 780mm

Tool length in operating direction max. 580mm

Tool height on upper table max./min. 120 - 220mm

Tool height on low er table max./min. 110 - 200mm

Punching level above material level max. 120mm

Punching level below material level max. 120mm

Table stroke on top max. 140mm

Table stroke on bottom max. 140mm


Steel Rule Punch

Number of cycles max. 55 1/min

Punching force max. 600kN

Height adj. upp. table, value of adjustment 0.03mm

Tool width between material transport max. 780mm

Tool length in indexing direction max. 555mm

Punching dimension in indexing direction max. 550mm

Punching dimension across indexing direction 775mm

Tool height on upper table max./min. 140/80mm

Tool height on lower table max./min. 140/4mm

Height of punching part above material level max. 120mm





Specifications

ManufacturerIllig
ModelRDKP 72k
Year2017
ConditionUsed
