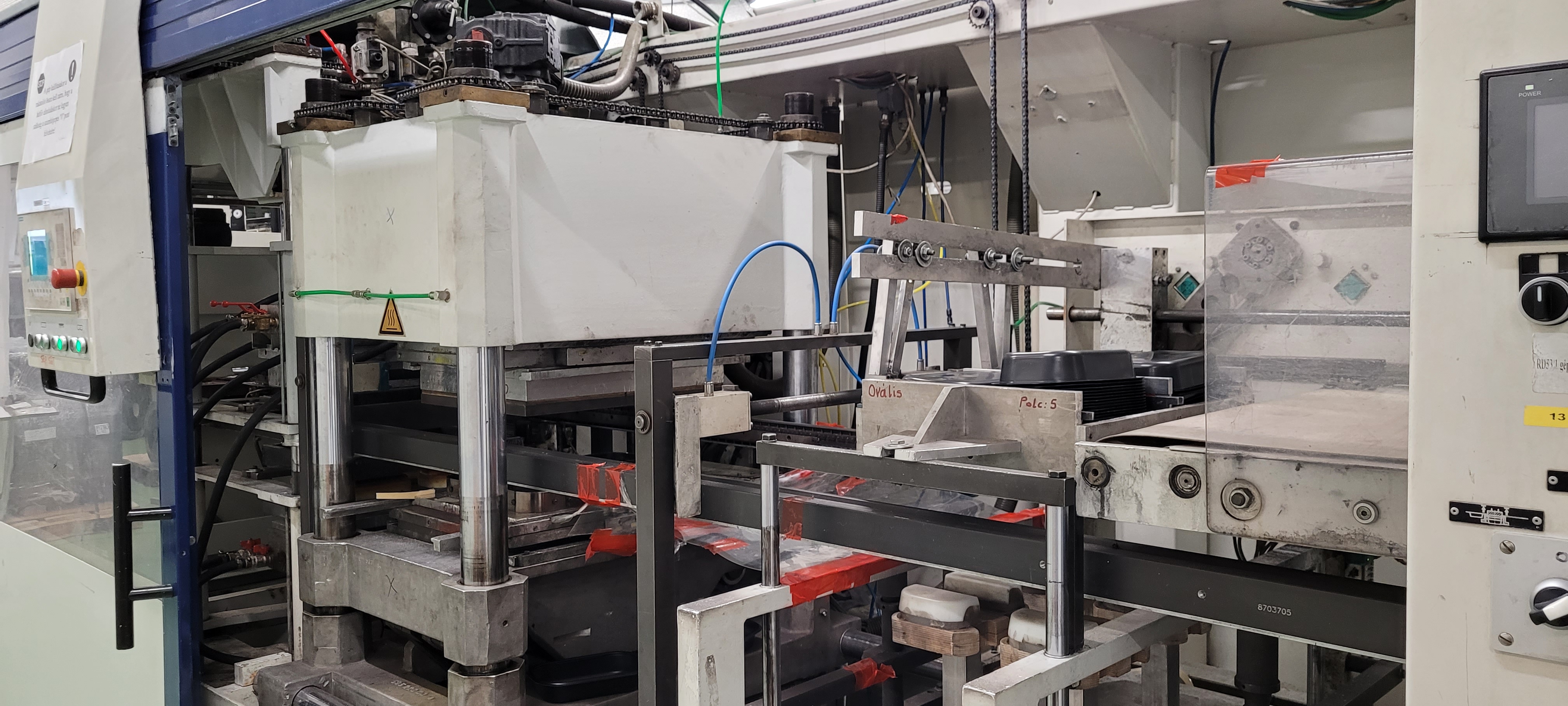

2004 Illig RD 53
Sold
Description
Material: PP (with preheater), HIPS, PS, PVC, PET
Stations: Forming, Cutting and Stacking
Max Forming Area: 500 x 350 mm
Min Forming Area: 300 x 160 mm
Film width: 540 mm
Height of Forming Above-Below Material Level: 100 / 40 mm
Max Mould Closing Force: 55 kN
Forming Pressure: 2 bar
Cycles/Min: 40
Total motor power: 32 kW
Total heating power: 44,9 kW
Rated current: 115 A
Dimensions (L x W x H): 8,3 x 2,3 x 2,5 m
Specifications
| Manufacturer | Illig |
| Model | RD 53 |
| Year | 2004 |
| Condition | Used |
