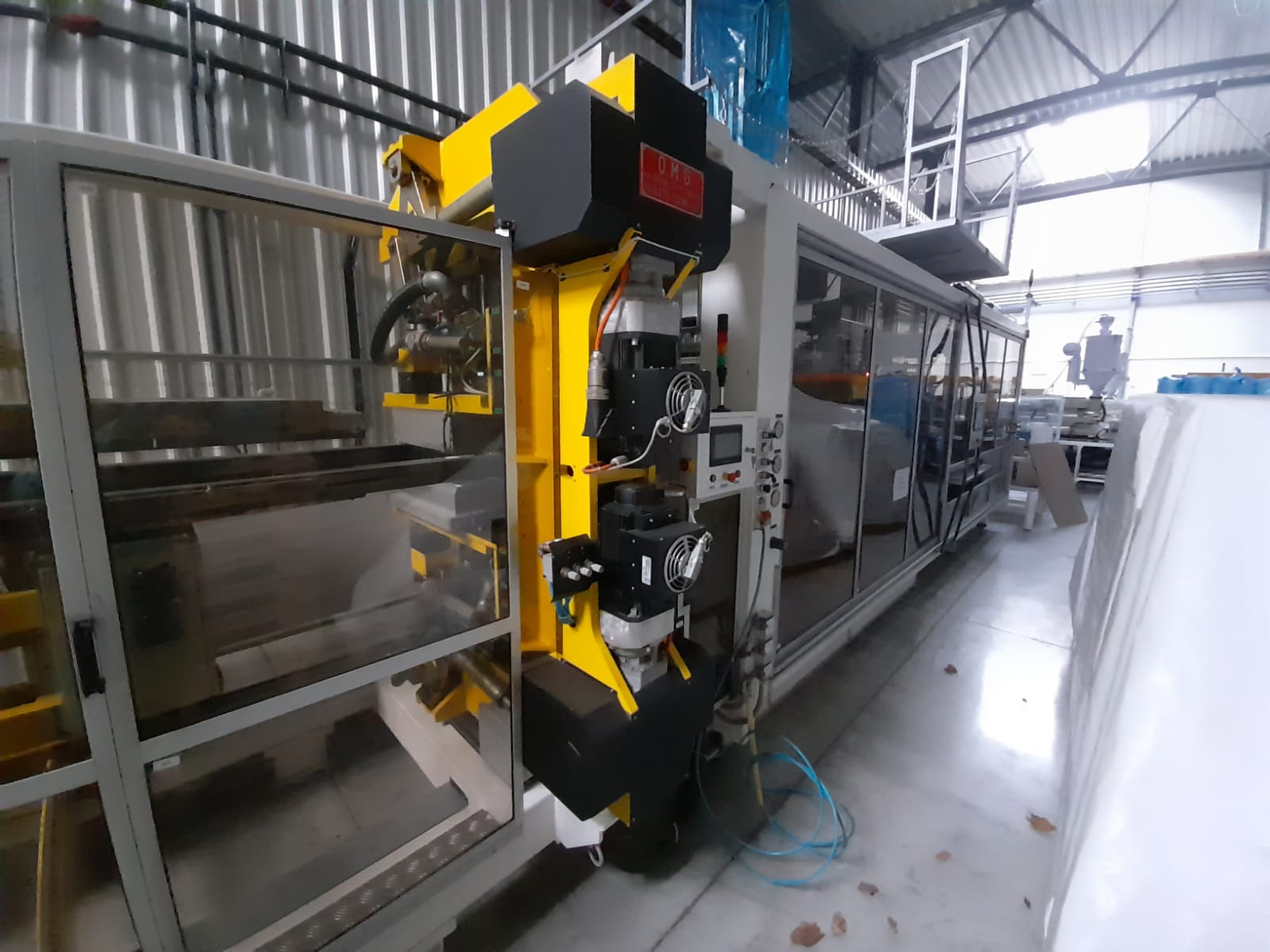

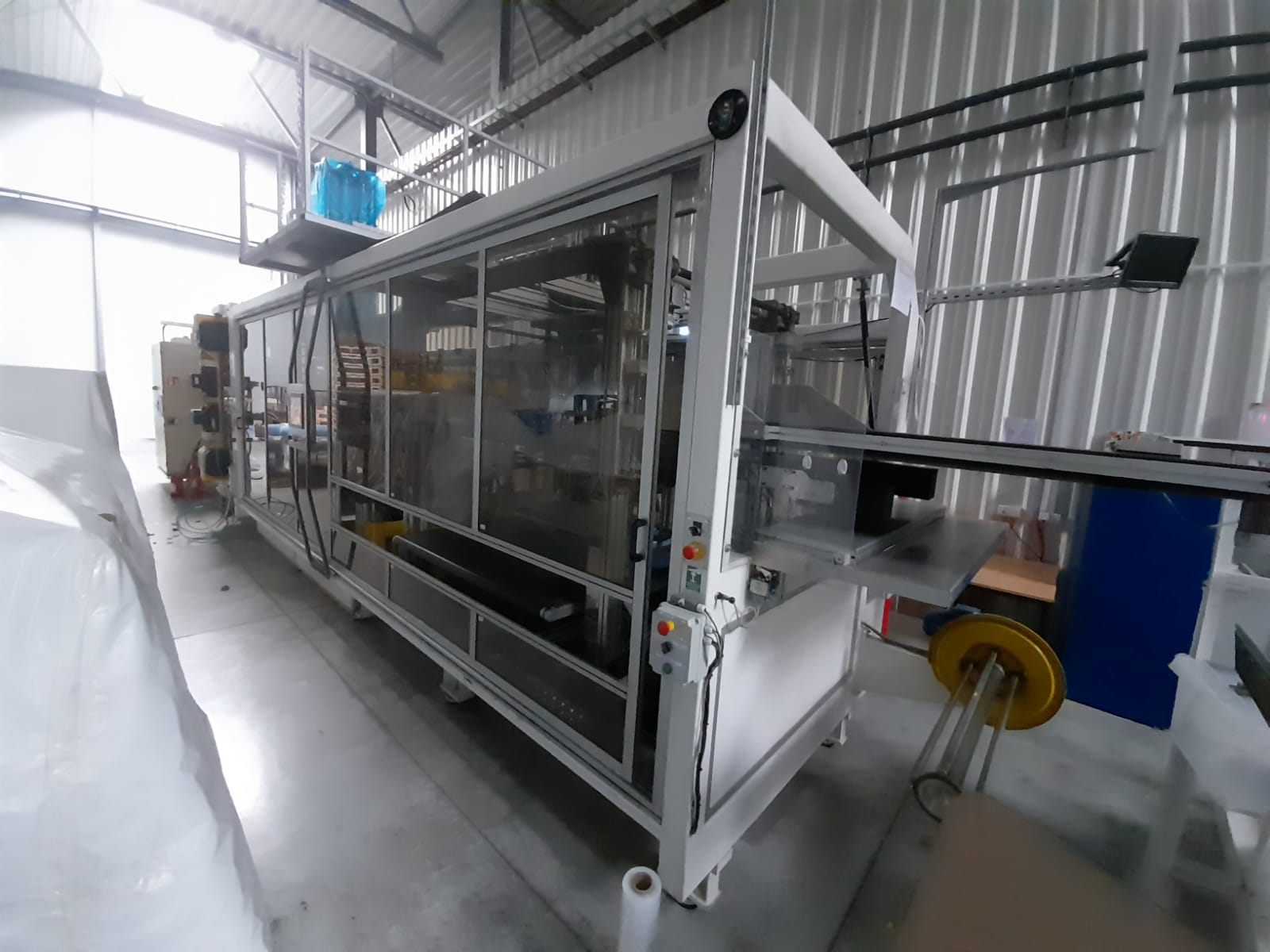

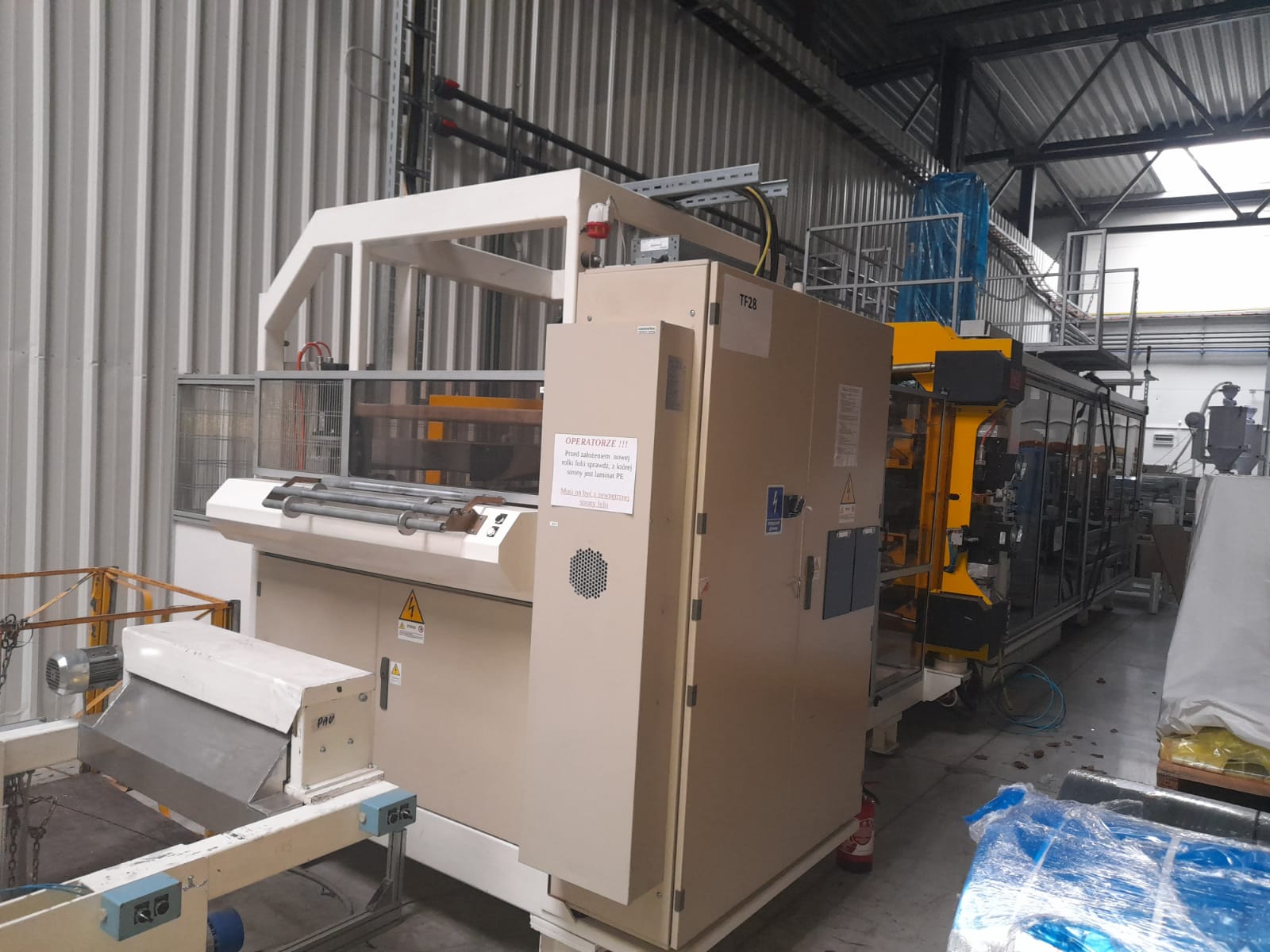

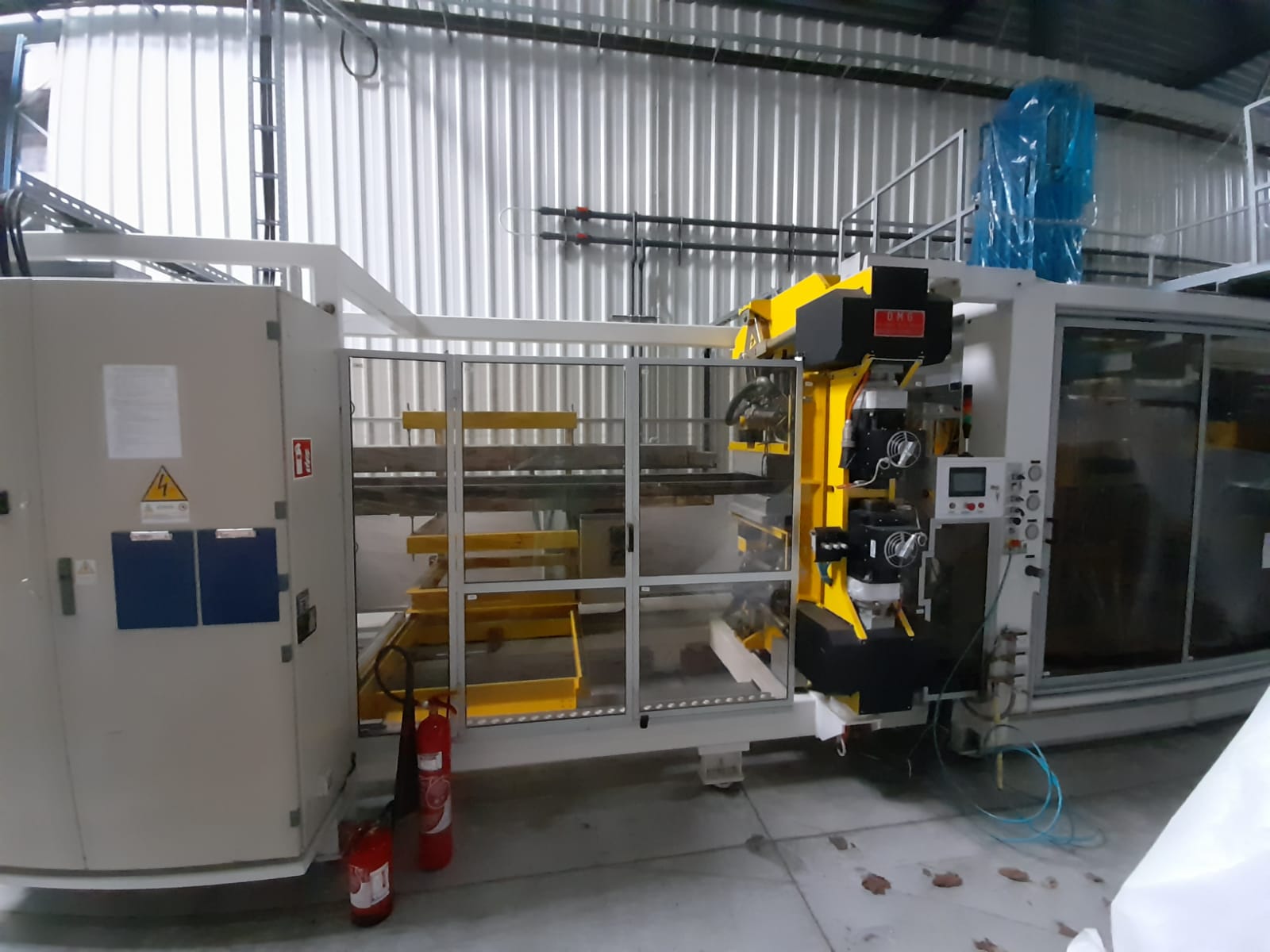

2009 OMG OMF/PVE 112 PN-M

2009 OMG OMF/PVE 112 PN-M

Contact us for price

orCall +44 7774 152 152

Description

Max Forming area (L x W): 1400 x 800mm


Min Forming area (L x W): 300 x 300mm


Max.positive and negative depth 150 mm


Max. Sheet width 840 mm


Number of stations: 3


Product type: Container


Feeding Systems: Roll Fed


Type: Hydraulic


The machine has been designed for PET film.


Upper heating, installed power 55 kW

Lower heating, installed power 55 kW

Processing air pressure 6 bar

Max. Forming pressure 2 bar

Hydraulic power pressure 11 kW

Max. Cutting clamping force approx. 70T

No preheating unit


The production capacity for height of tray H60 i H80 without padding – max. 24 000 pcs / 8h

The production capacity for height of tray H60 i H80 with padding – max. 10 000 pcs / 8h

Noise ( near 1 m): max 82 dB

The machine includes reel holder, automatic chain feeding and transport system, heating zone, forming station, cutting station, stacking station.

All settings are controlled by the PLC operator panel.

Specifications

ManufacturerOMG
ModelOMF/PVE 112 PN-M
Year2009
ConditionUsed
