2017 Bandera PET Twin Screw Co-Extrusion Line

2017 Bandera PET Twin Screw Co-Extrusion Line

Contact us for price

orCall +44 7774 152 152

Description

1100mm wide Bandera coextrusion twin screw PET sheet line for up to 700kg/hr PET sheet. 70mm twin and 65mm single extruders, calender winders 2017

Make: Bandera

Model: Twin Screw PET Extrusion Line

Year: 2017

Condition: Excellent

Availability: Immediately


Materials: PET (Virgin and Recycled Flake)

Material Width Range: 0.18mm – 1.2mm

Max Sheet Width: 1100mm

Output: 700kg/hour

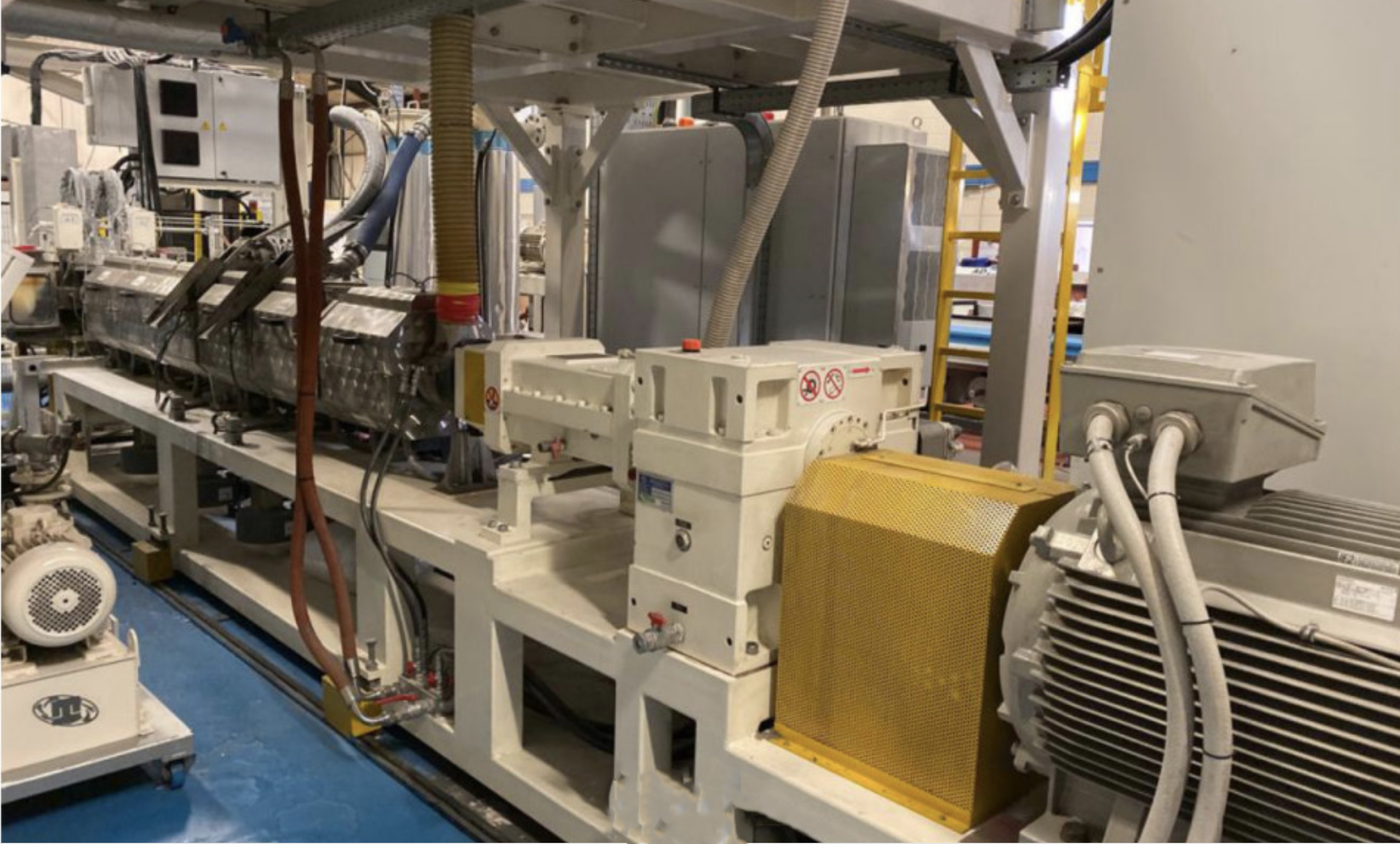

Main Extruder: 70mm Bandera twin screw extruder 2C70mm 52D air cooled

Co-Extruder: 65mm Bandera single screw TR65 35D with 75kw ac motor and invertor

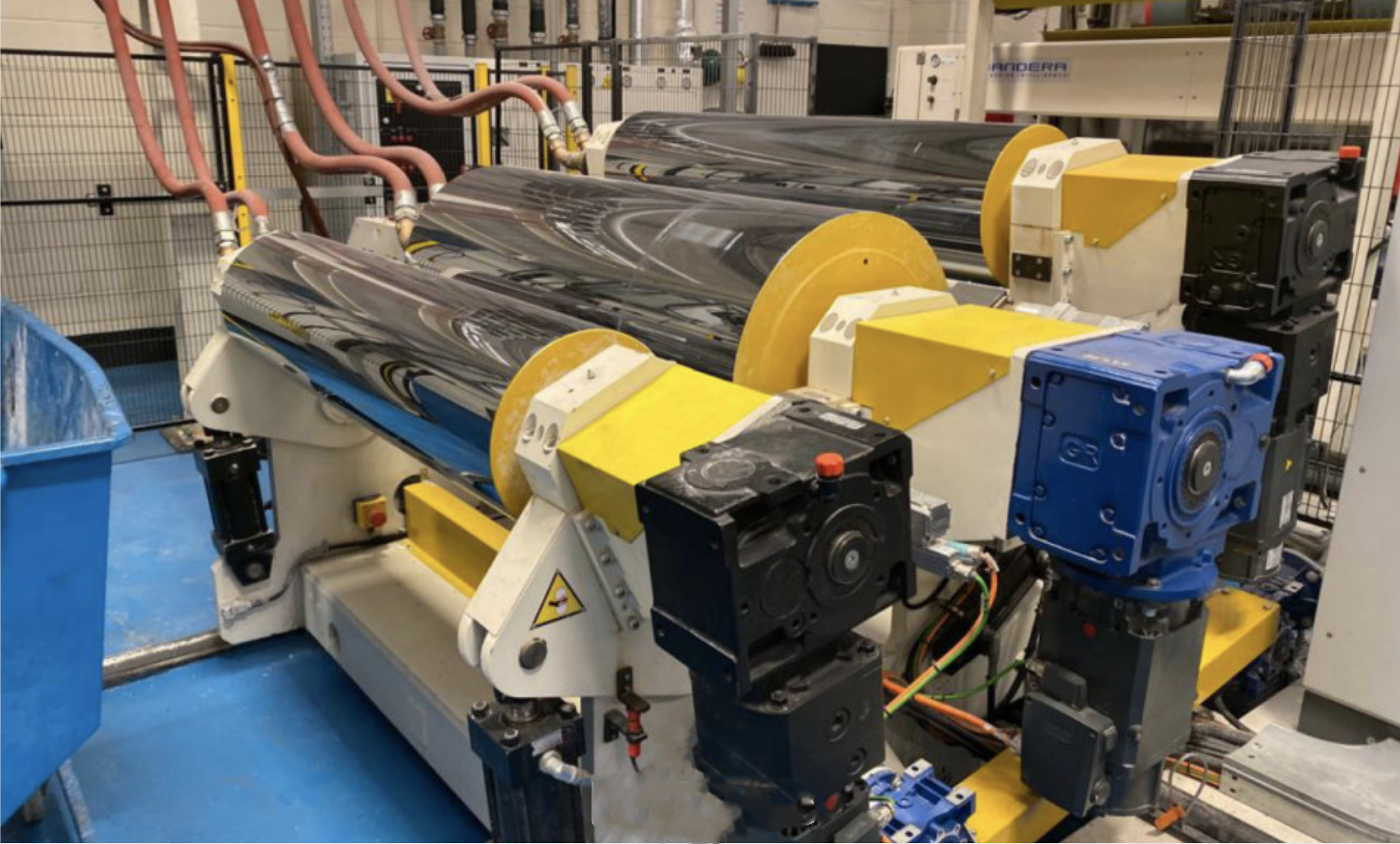

* Running from 0.18mm to 1.2mm thick PET up to 700kg/hr. Mix of virgin, post consumer bottle flake and skeletal flake. Component gravimetric blending system for primary and secondary extruders. De dusting - hopper loaders. * 70mm Bandera twin screw extruder 2C70mm 52D air cooled. 200kw ac motor with inverter drive. Double vented with liquid ring vacuum pump. * Back flush screen changer with 100mm diameter. Dual piston. 4/101. plc control. * Bandera model 275 gear pump with ac motor and plc control. * 65mm Bandera single screw TR65 35D coextruder with 75kw ac motor and invertor. Vented with liquid ring vacuum pump. Manual screen changer. Bandera model 183 melt pump with ac motor and invertor speed control. * ABA feedblock with selector plug. * 1400mm wide flex lip single manifold sheet die. Max net width of the sheet is 1100mm. Manual internal deckles. Flex top lip. Fixed bottom lip. Close approach. * 1400mm wide 3 roll polishing stack with horizontal configuration. 350mm x 600mm x 350mm diameter. Individual ac motors with invertor speed drives. 3 zone pump group. * 1300mm wide air cushion measuring sensor thickness scanner * 1300mm wide silicon coater device and dryer. 4 rolls 200mm diameter. * in line cutters with auto blade opening. * Edge trim granulator with nip rolls and soundproofing. Max width 1500mm - 75kg/hr max output. Fan and collection system. * 1100mm wide cantelever winding system with accumulator. 2 position. 3" and 6" cores. Max roll weight 1200kgs. Max roll diameter 1000mm



Specifications

ManufacturerBandera
ModelPET Twin Screw Co-Extrusion Line
Year2017
ConditionUsed
