2006 Gabler M92 L
or
Call +44 7774 152 152
Description

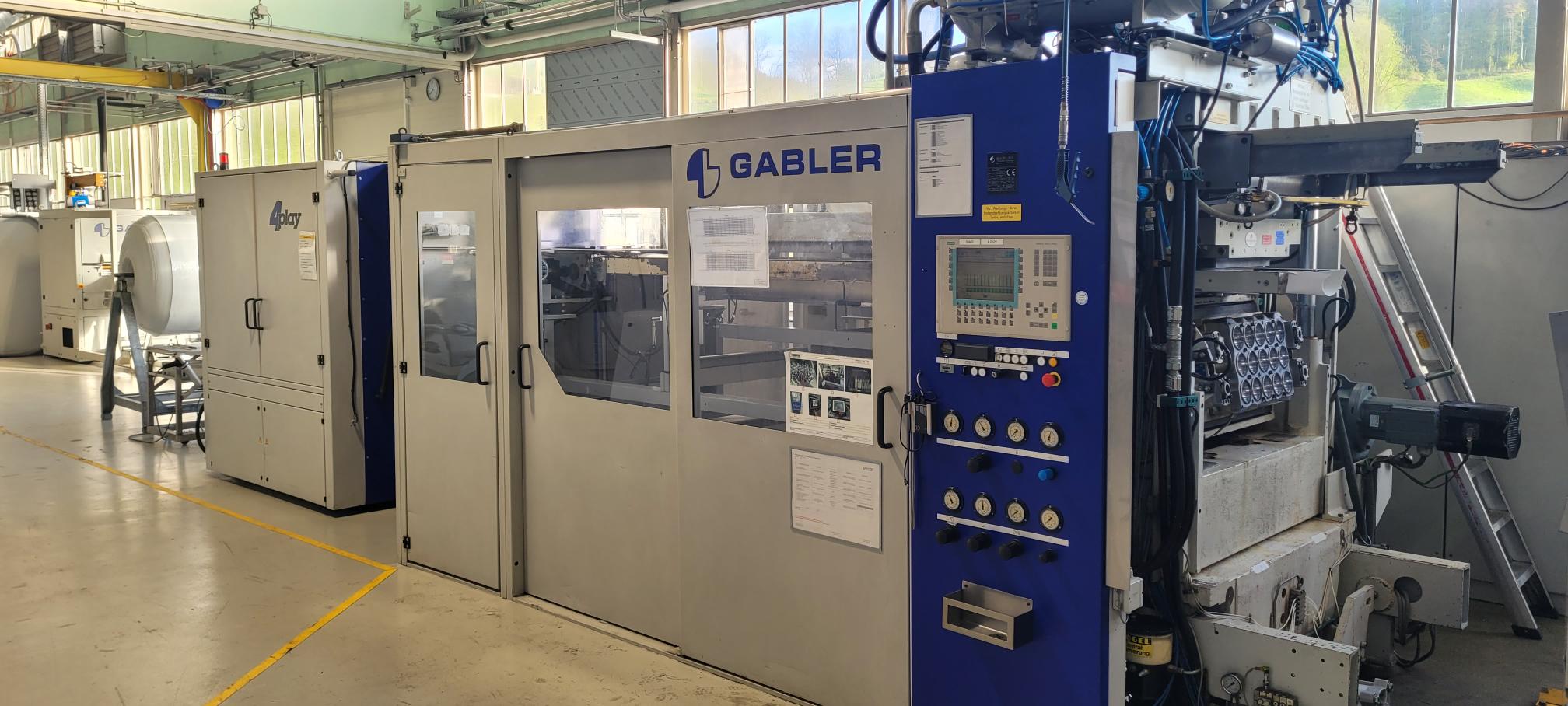

Machine is supplied with: - Gabler M92 L (2006) Cup Thermoformer - Gabler Stacking and Counting System
Optional Extras for additional cost:
- Gabler 4Play Preheater

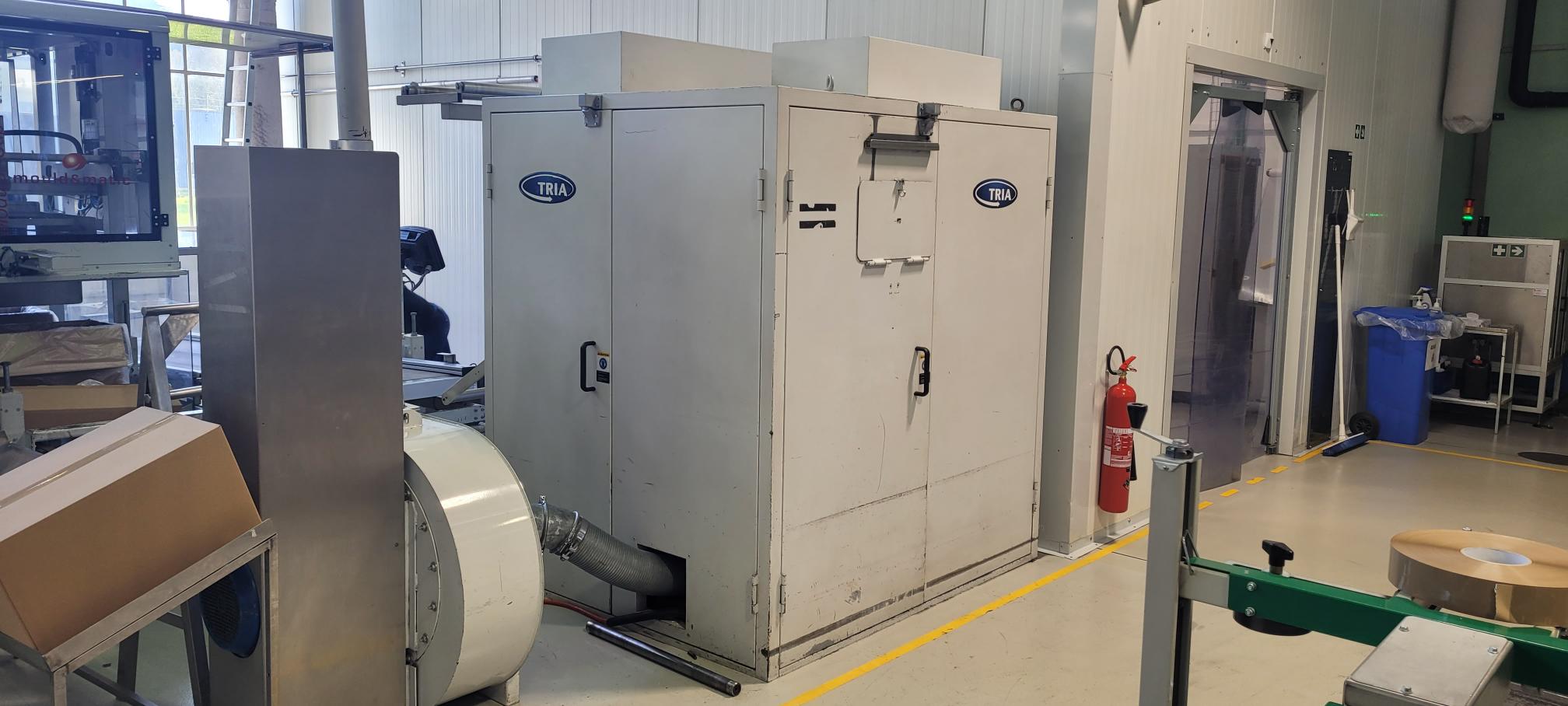

- Tria Grinder
- Deltatherm Chiller
Specifications
| Manufacturer | Gabler |
| Model | M92 L |
| Year | 2006 |
| Condition | Used |
| Stock Number | 00006 |
| Max forming area | 750 x 436 mm |
| Depth of draw | 150 mm |
| Max material width | 835 mm |
| Max cycles / min | 44 |
| Max mould closing force | 350 kN |
| Max top heater output | 81.90 kW |
| Max bottom heater output | 54.60 kW |
| Operating air pressure | 8 bar |
| Power Supply | 230V 50Hz |
| Total Connected Load | 138.66 kW |
| Approx Dimensions | 7,925 x 5,320 x 3900mm (LxWxH) |
| Approx Weight | 10,400 kg |
| Notes | All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. |
