2007 Union Extruder

Sold

Description

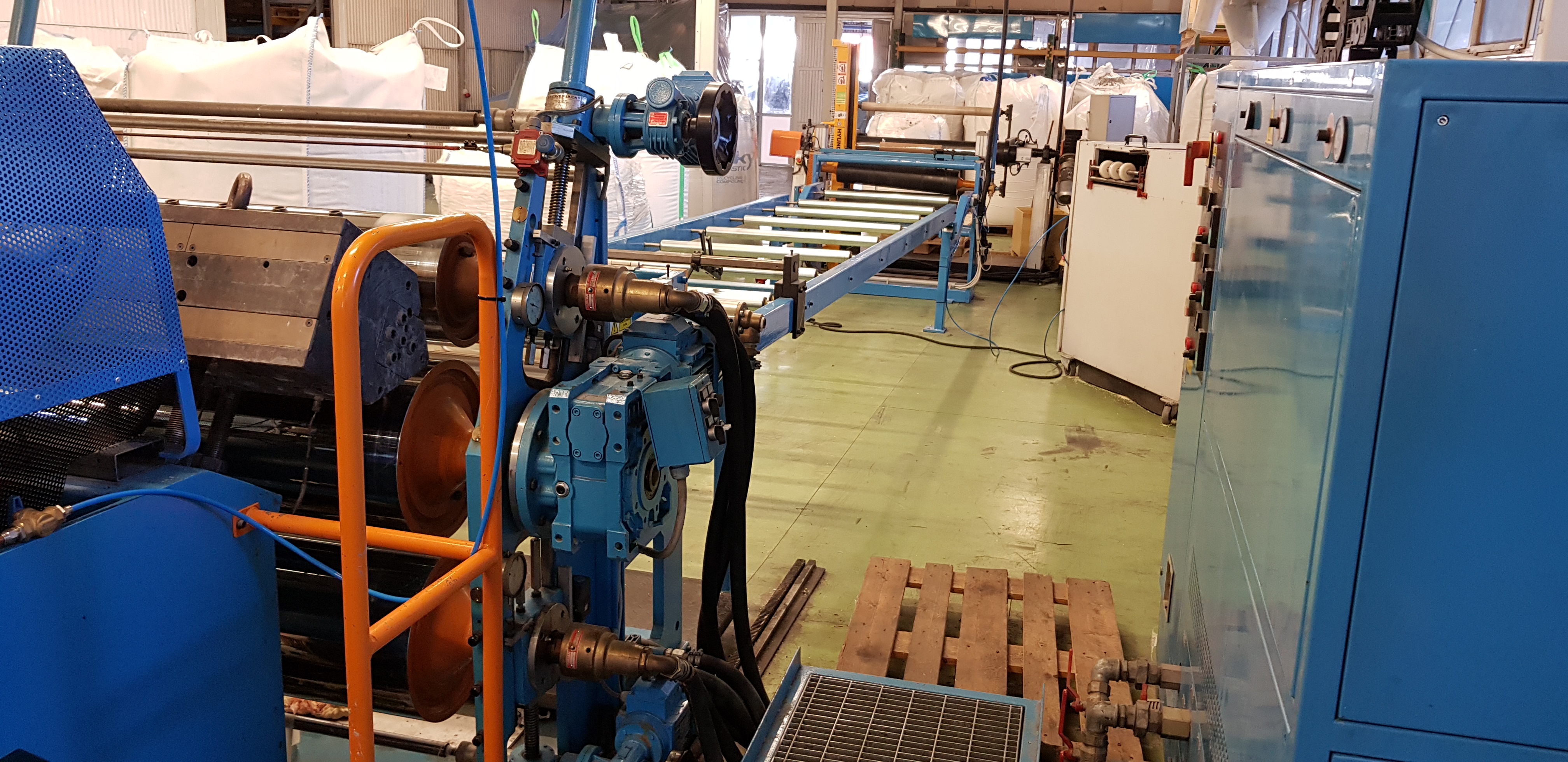

2007 Union Extrusion Line Available: - Offline Complete Extrusion Line


Die

Width of die: Overall 1060 mm, 950 mm gross sheet width

Lip open and close range: 0,1-2,0 mm

Manufacturer of the die: Simplas

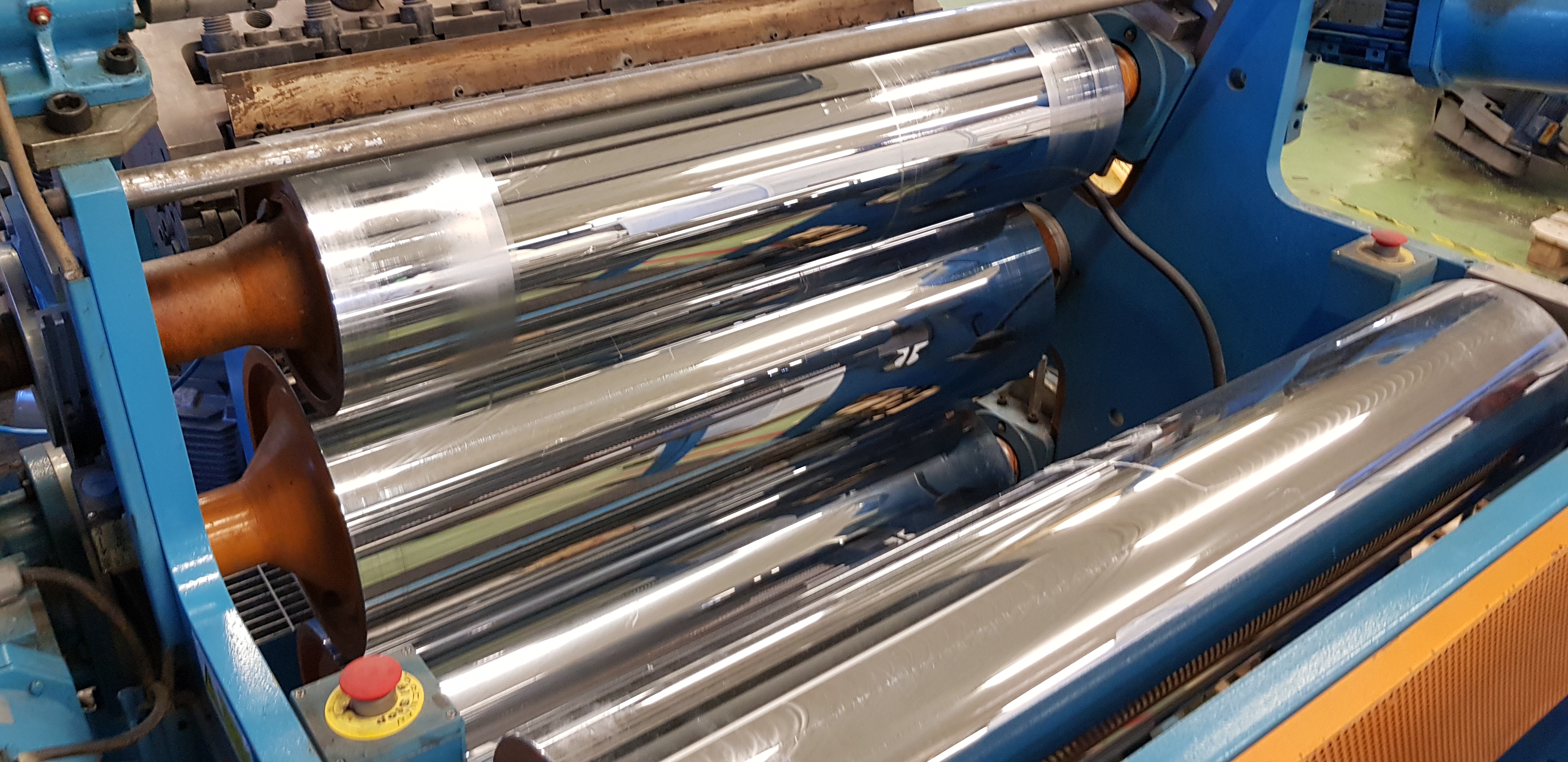

Roll Calendar

1. Width of the rolls: 1000 mm

2. Diameter of the rolls: 1 x Ø250 mm and 2 x Ø350 mm

3. Type of rolls: Mirror finish

4. Make of Calendar and downstream: Calendars are manufactured by Union, downstream was made by the owner.

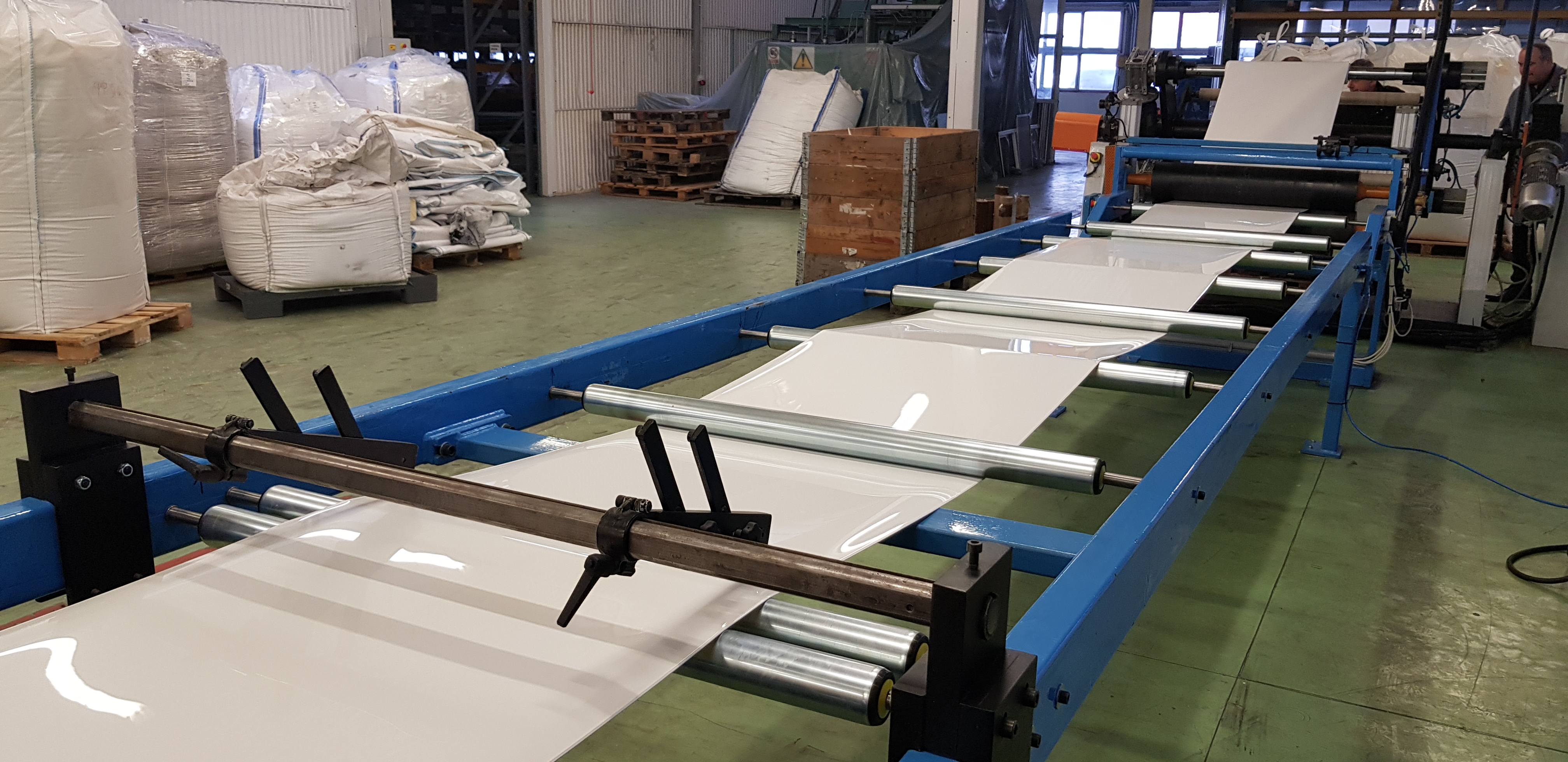

Custom made cooling bracket

1. Length & width of conveyor: 7000 x 1000 mm, 10 pcs of Ø60 mm x 1000 mm steel rollers

2. Cutting stations for edge trim or other, if so, how many stations on the conveyor:


Edge trim on both side with cutting knives

Pull rolls/Haul-off unit

1. Width of rolls: 1000 mm

2. Diameter of pull rolls and type, i.e. steel, rubber of other: Ø200 mm, both have rubber surface

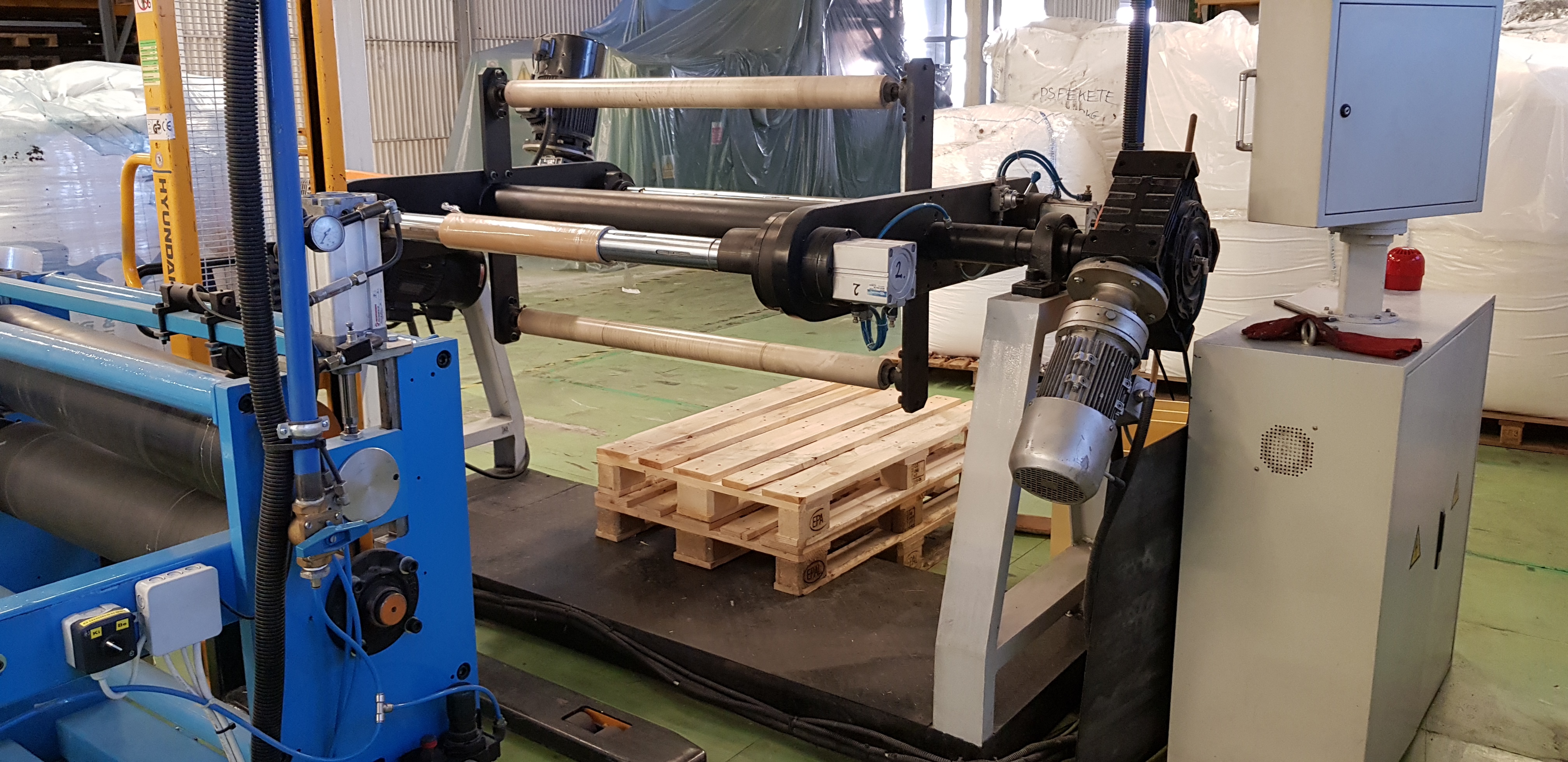

Winder

1. Type of winder: Indexing two position

2. Maximum roll diameter capacity of the winder: 800 mm

Specifications

ManufacturerUnion
ModelExtruder
Year2007
ConditionUsed
MaterialsPS / PP
Delivery DateImmediately
Max Sheet Width950
Thickness Range0.2 - 0.7 mm
Max Output400 kg/h (PS)
L/D35
Dimensions(L x W x H): 15 x 4.7 x 2.6 m
NotesAll details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.
