1994 Davis Standard PP/PS Extrusion Line

1994 Davis Standard PP/PS Extrusion Line

Contact us for price

orCall +44 7774 152 152

Description

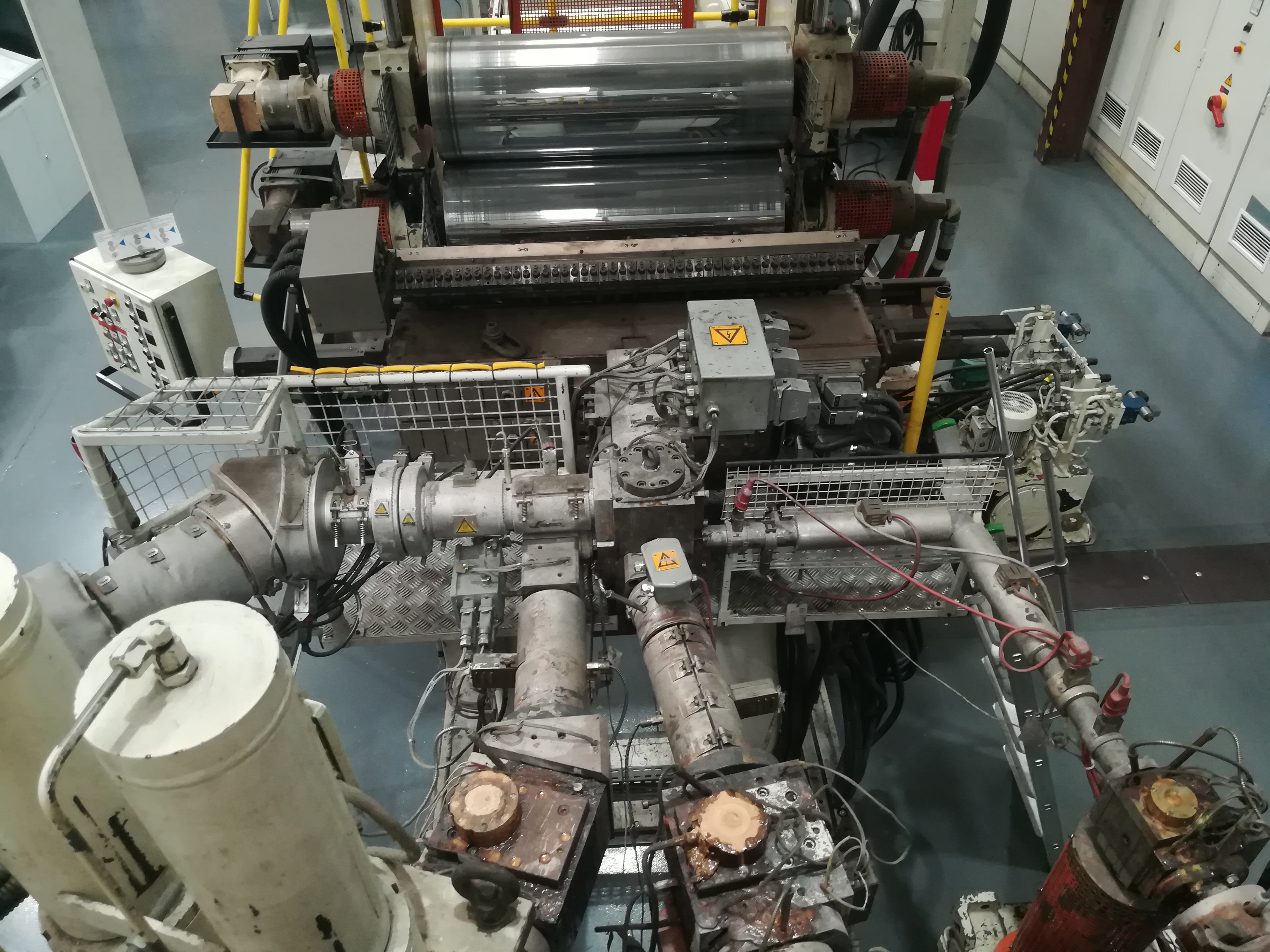

1994 Davis Standard Sheet Extrusion Line


- Machine is supplied with 4 x Extruders.

  • 125mm 1994 Davis Standard Main Screw - 800 kg/h
  • 125mm 1994 Davis Standard Main Screw Neocell - 800 kg/h
  • 75.0mm 2015 Battenfeld Co-Extruder - 880 kg/h (PS)
  • 63.5mm 1994 Davis Standard Gloss External Layer - 200 kg/h


- Cloeren Feedblock - 3 layer upto 5 catridge


- 1250 mm Cloeren Die Head

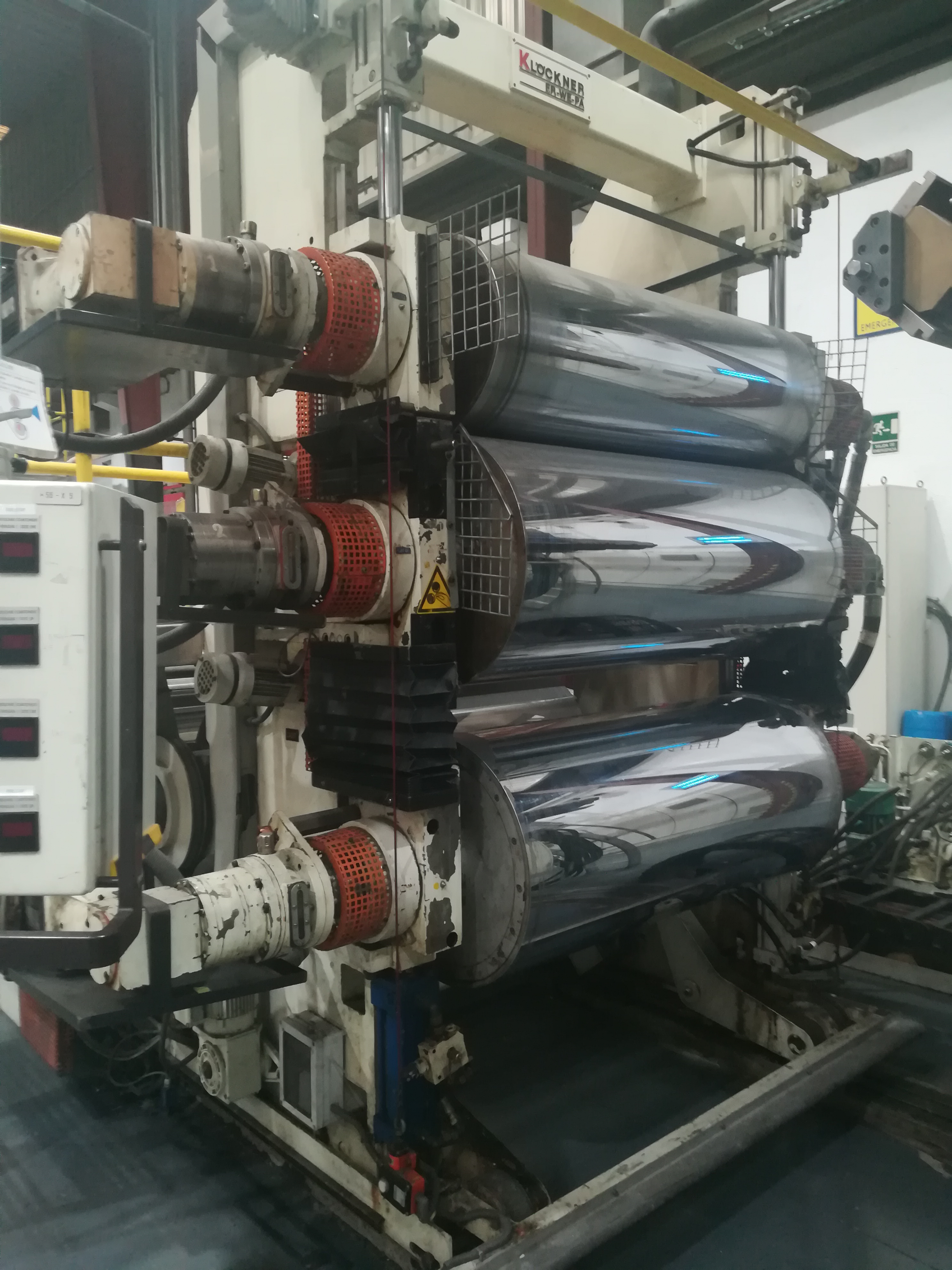

- 5 x Calendar Rolls - Diameters: 450 / 600 / 600 / 600 / 600 mm


- No Dryer


- Gneuss / Kreyenborg Filter


- 4 x Demag Gear Pumps


- Electronic Thickness Control


- Camera Inspection Included


- Piovan Dosing System:

  • MDL 850 x 2
  • MDW 100
  • MDW 100 Sing Units: FDM S7


- Edge Trim Granulation


- Roll Cutting Unit


- Maier Double Winding System

Specifications

ManufacturerDavis Standard
ModelPP/PS Extrusion Line
Year1994
ConditionUsed
MaterialsPP & PS
Max PP Material Thickness0.3 - 1.5mm
Max Sheet Width1200 mm
Max OutputPS: 2000 kg/h / PP: 1200 kg/h
Max Roll DiameterTBC
Power Supply400V 50Hz
NotesAll details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.
Max Speed50m / minute
