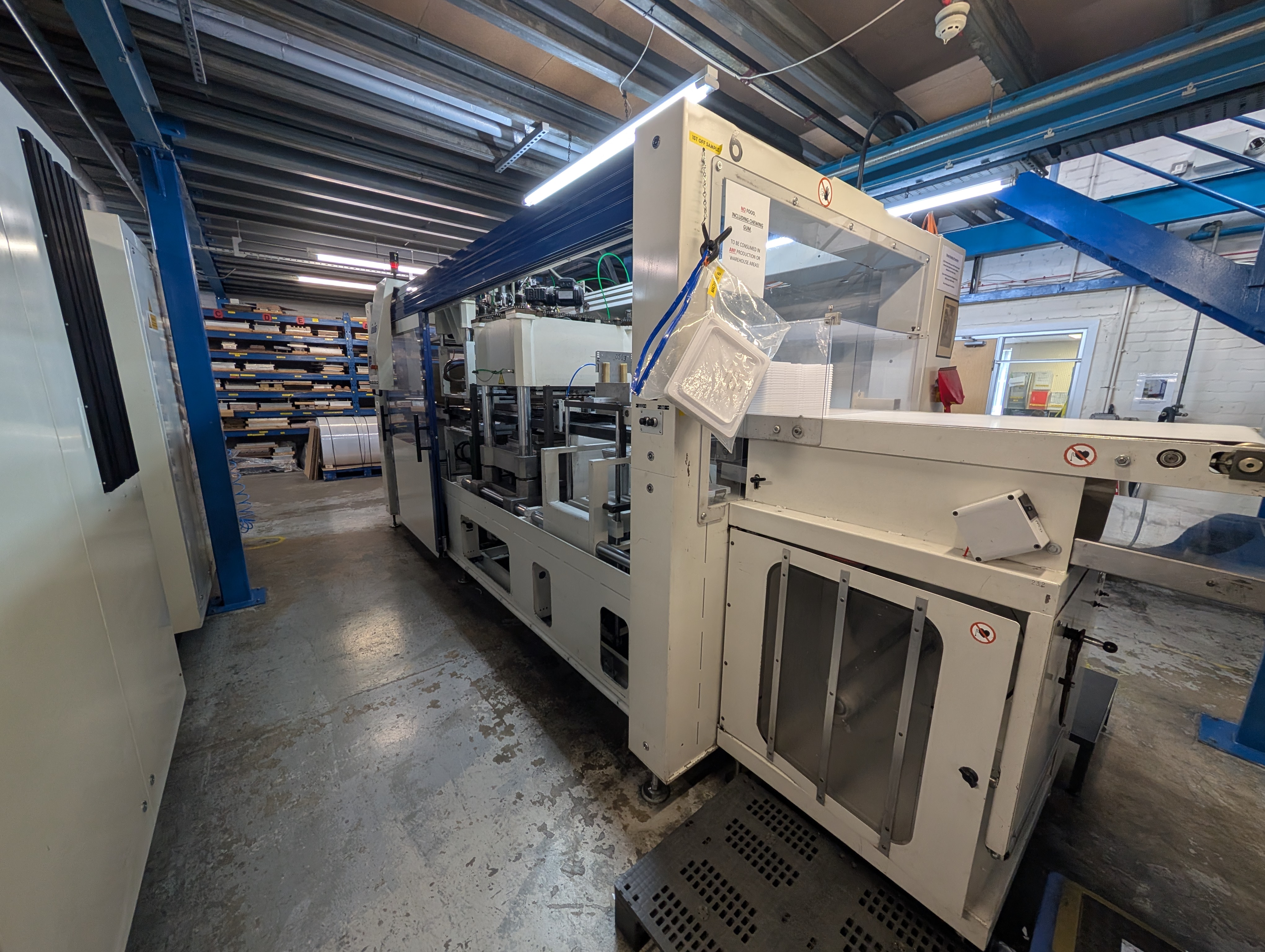

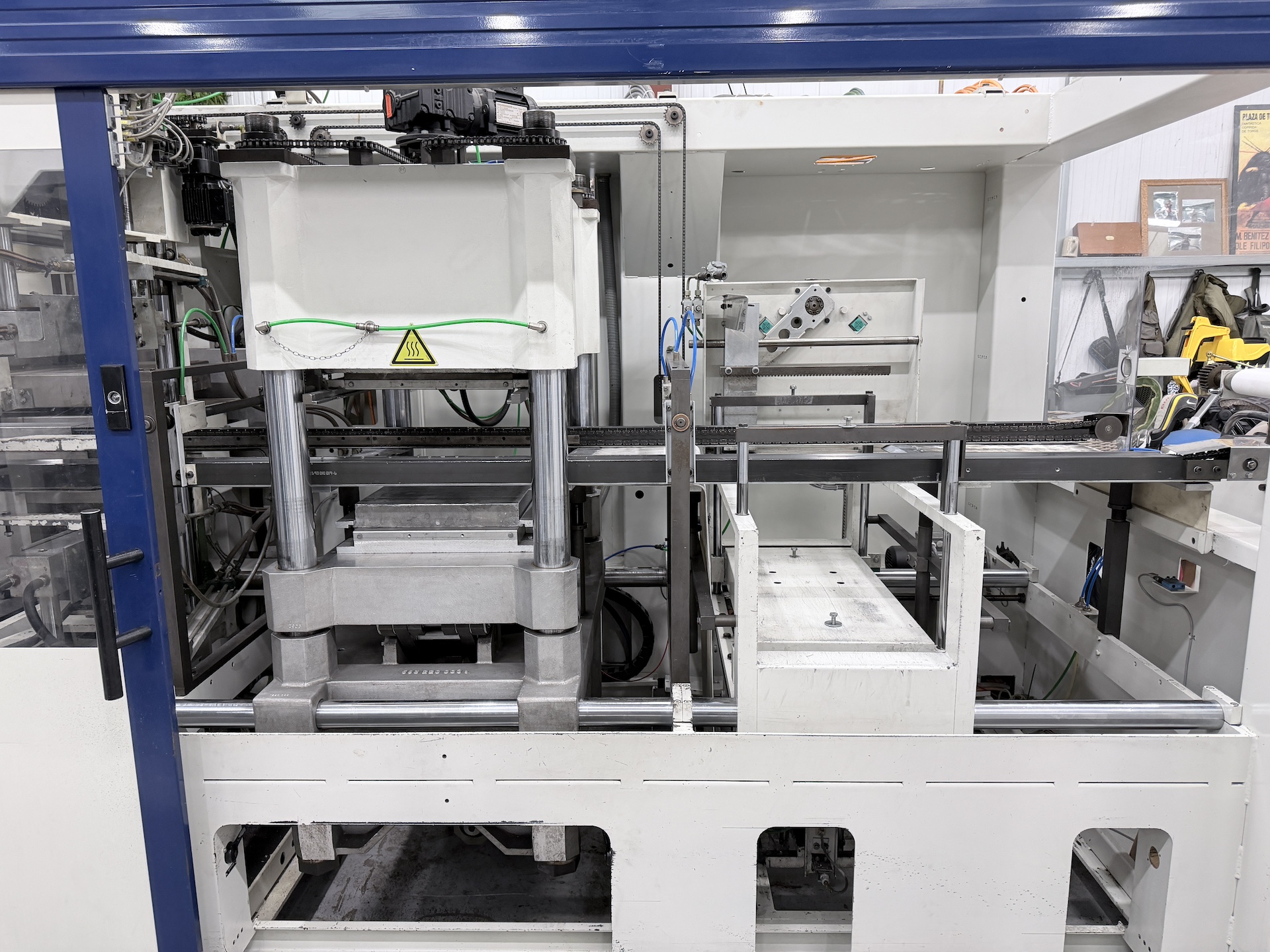

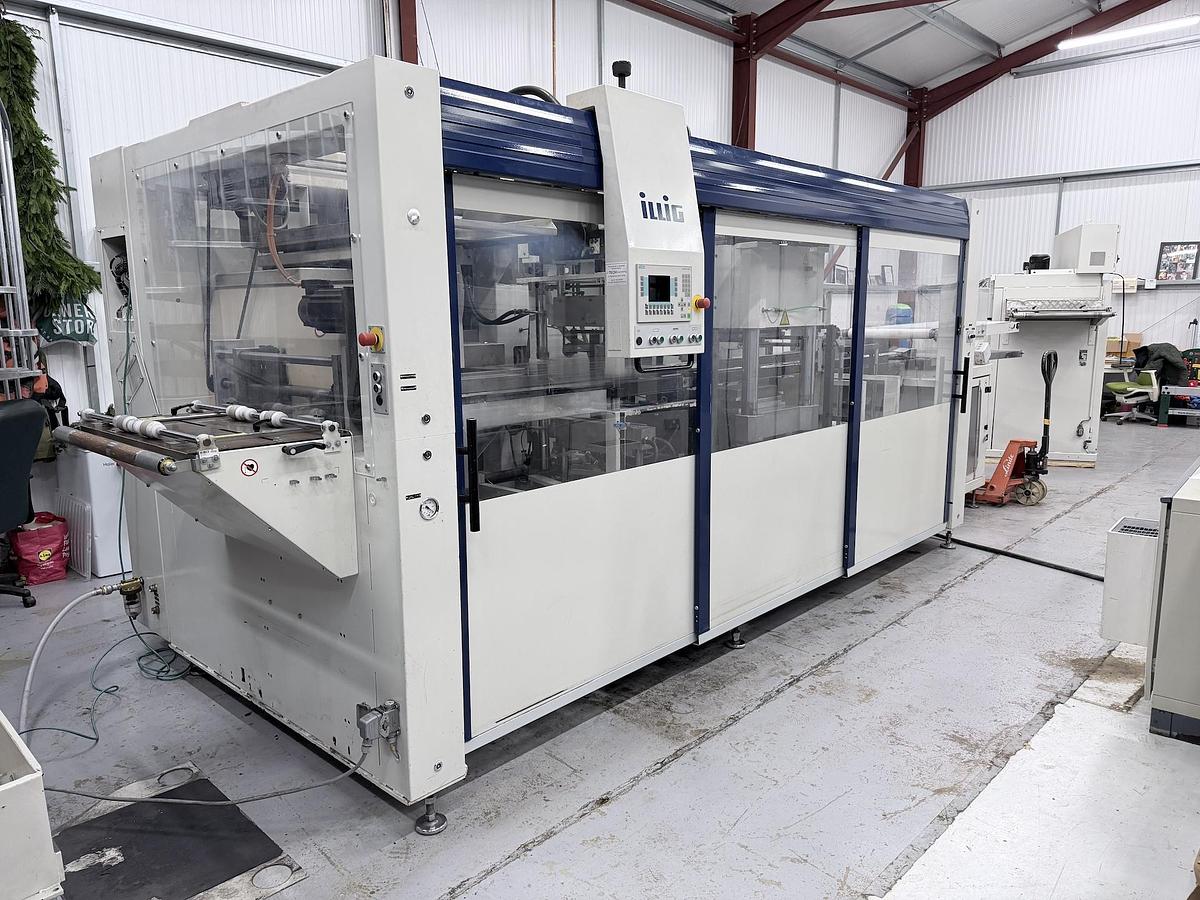

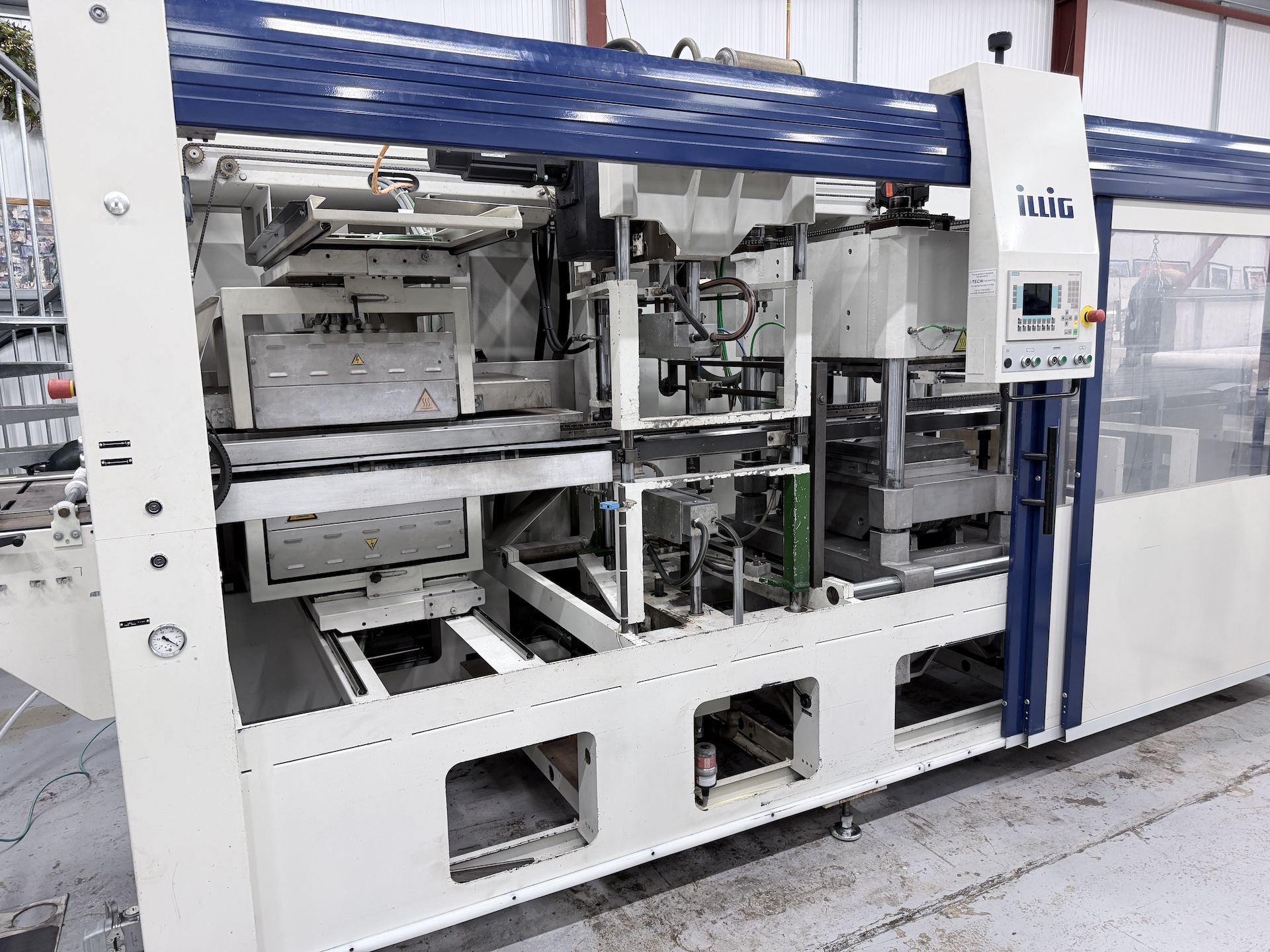

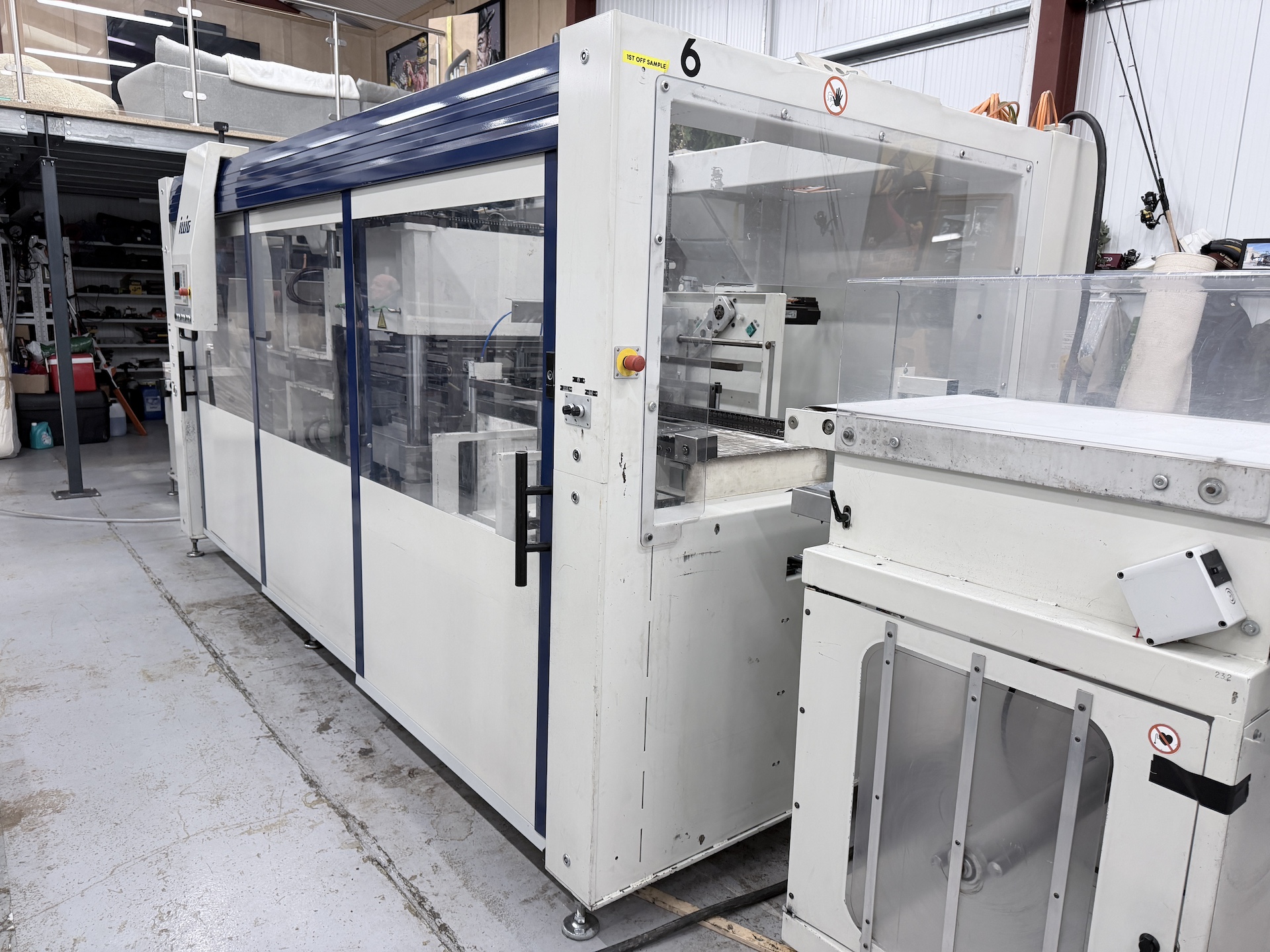

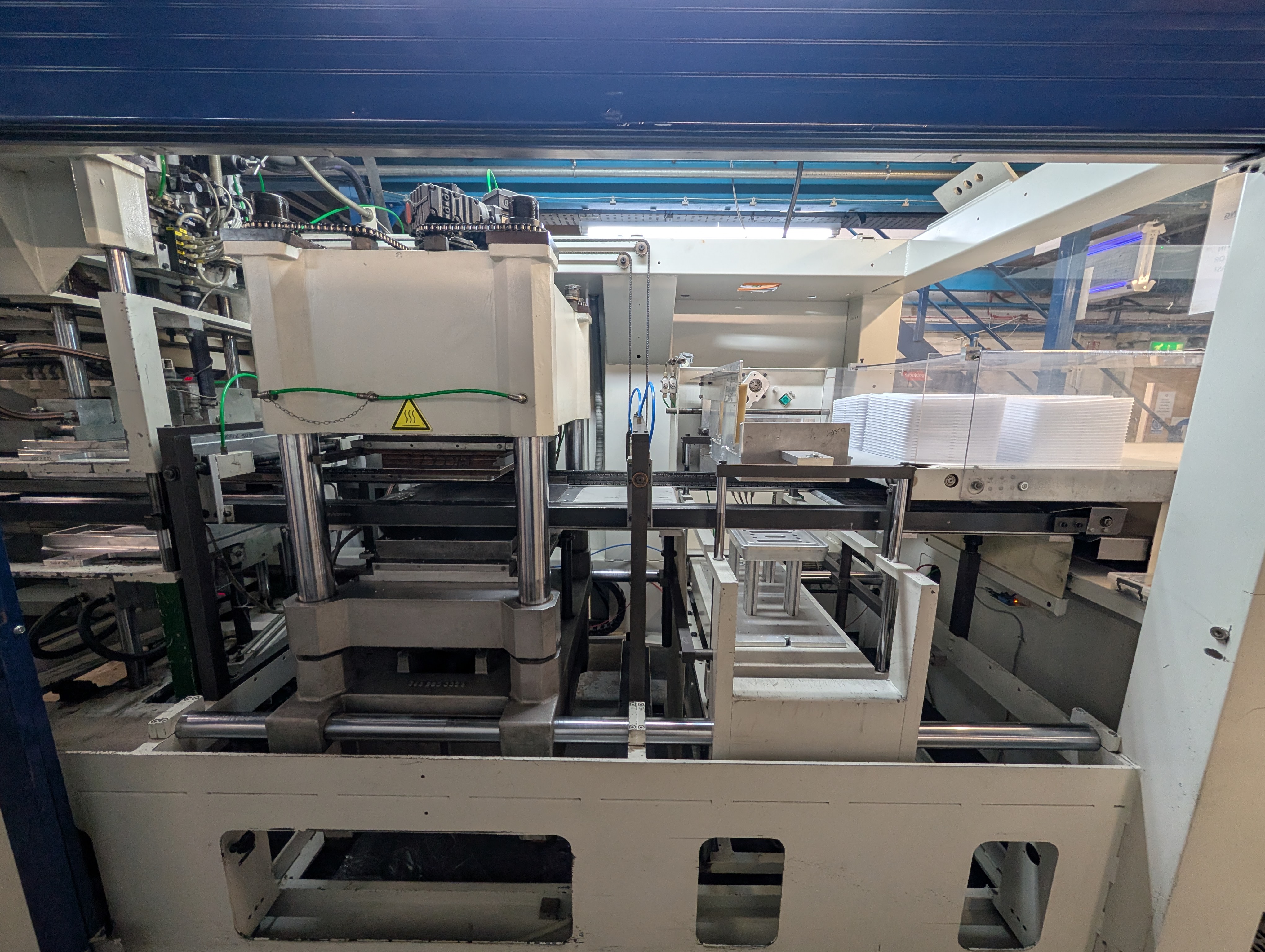

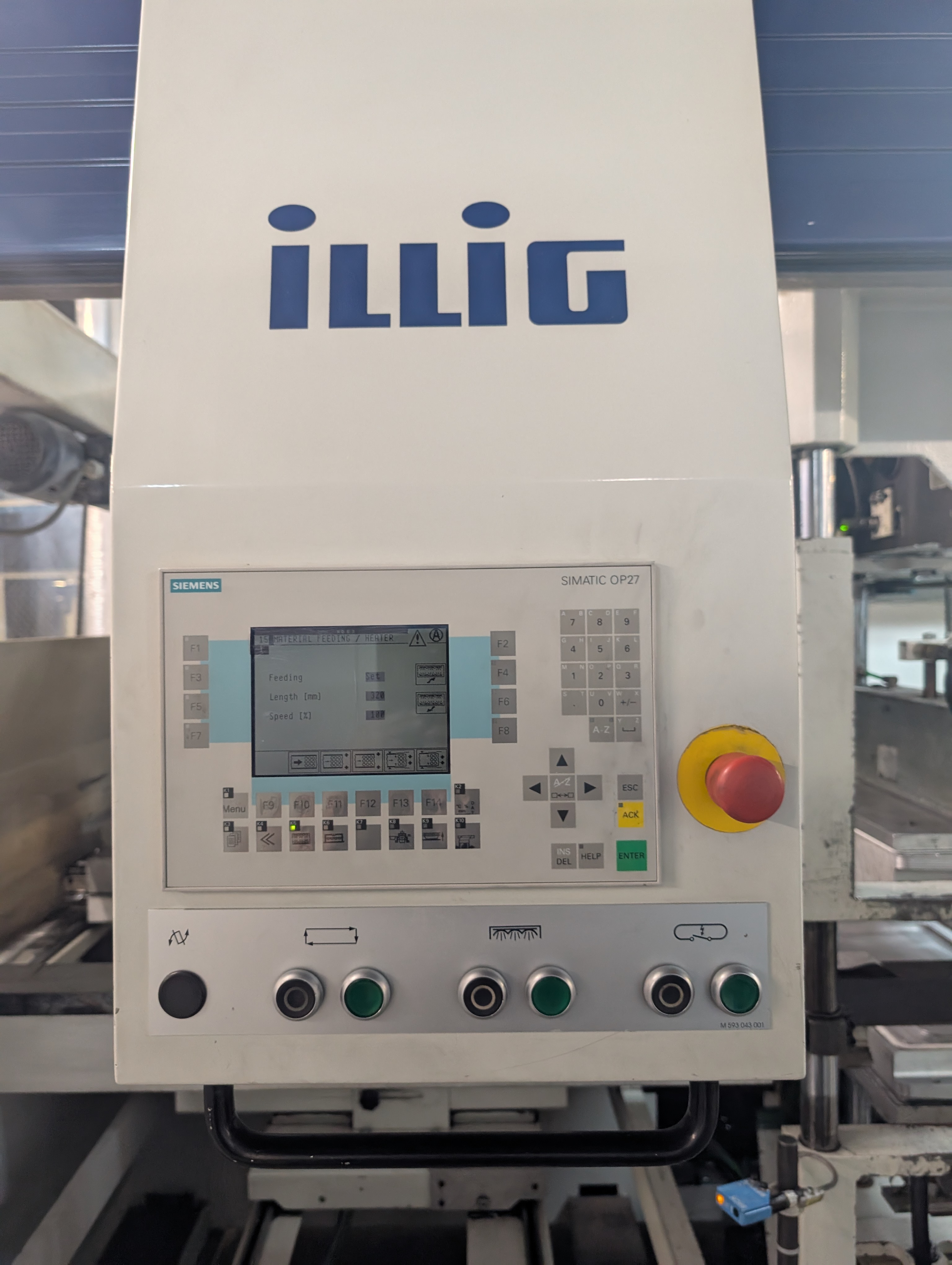

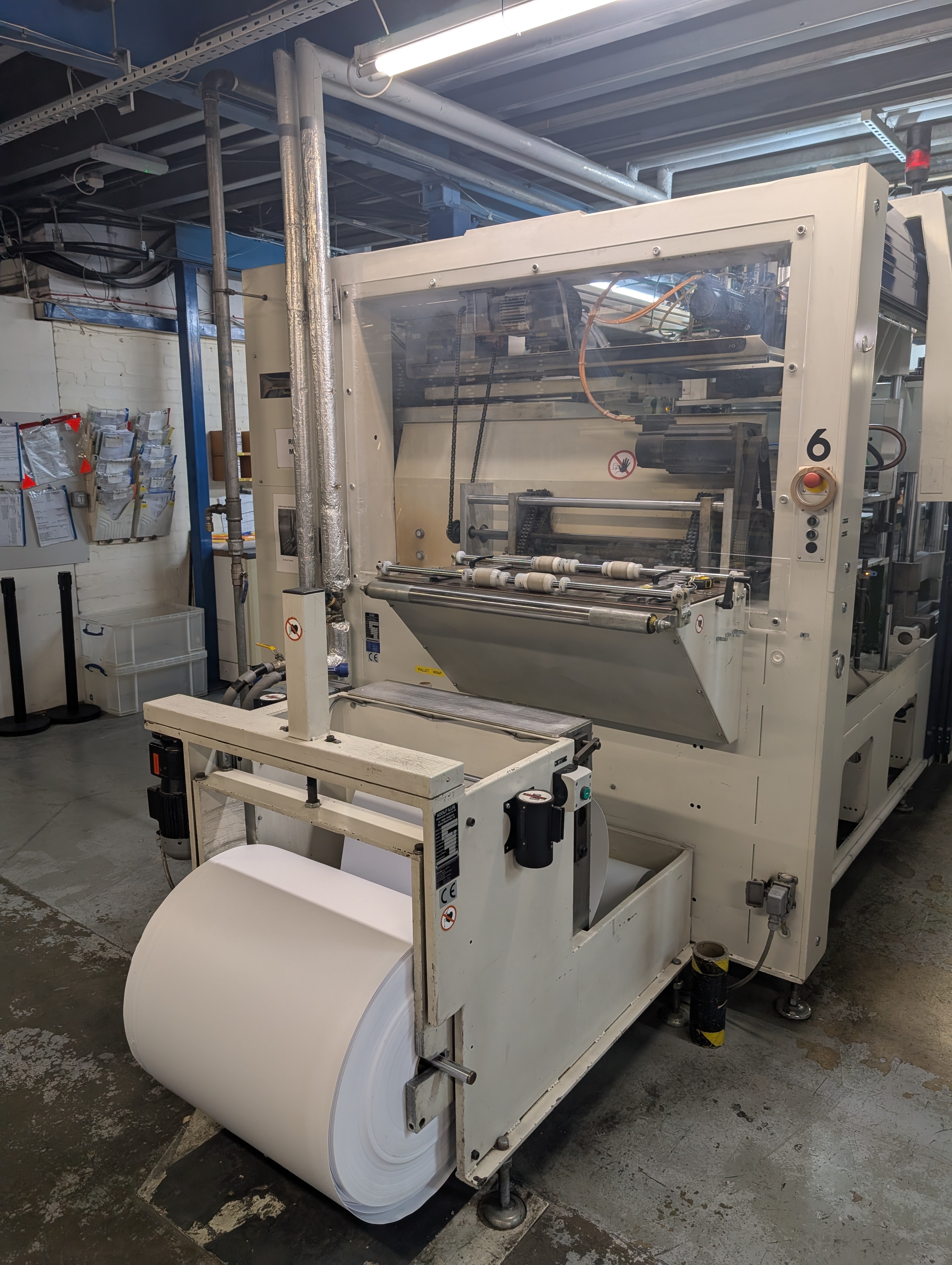

2006 Illig RD 53

Stations: Forming, Cutting and Stacking

Max Forming Area: 500 x 350 mm

Min Forming Area: 300 x 160 mm

Film width: 540 mm

Height of Forming Above-Below Material Level: 100 / 40 mm

Max Mould Closing Force: 55 kN

Forming Pressure: 2 bar

Cycles/Min: 40

Total motor power: 32 kW

Total heating power: 44,9 kW

Rated current: 115 A

Dimensions (L x W x H): 8,3 x 2,3 x 2,5 m
